Split plummer block housings SNL 30, 31 and 32 series

             Condition monitoring

             SNL housings in the 30, 31 and 32 series have
             appropriate positions for condition monitoring
             sensors († fig. 14).
               Postition 1 is a measurement point per-
             pendicular to the shaft and should be used
             when loads act away from the support
             surface.
               Position 2 is a measurement point perpen-
             dicular to the shaft and should be used when
             loads act toward the support surface.
               Position 3 is a measurement point parallel
             to the shaft and should be used when loads act
             toward the support surface.
               All three positions are in accordance with
             ISO 10816-1.
               For additional information about condition
             monitoring, as well as the measurement tools
             and systems available from SKF, contact your
             local SKF representative or SKF Authorized
             Distributor.

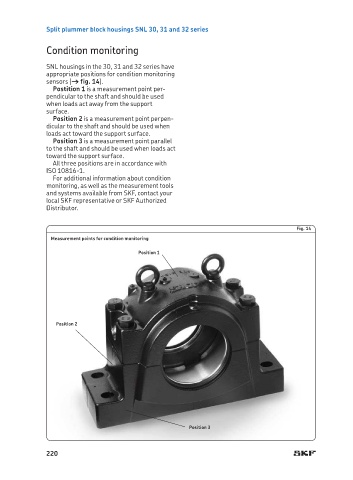

                                                                              Fig. 14
              Measurement points for condition monitoring
                                     Position 1










                Position 2














                                                  Position 3
