P. 222

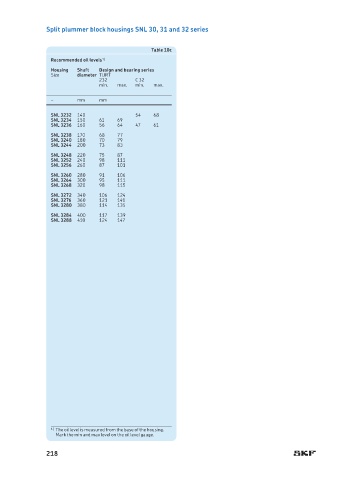

Split plummer block housings SNL 30, 31 and 32 series


                                         Table 10c
              Recommended oil levels 1)
              Housing  Shaft   Design and bearing series
              Size   diameter TURT
                           232      C 32
                           min.  max.  min.  max.
               –     mm    mm
              SNL 3232  140         54   68
              SNL 3234  150  61  69
              SNL 3236  160  56  64  47  61
              SNL 3238  170  68  77
              SNL 3240  180  70  79
              SNL 3244  200  73  83
              SNL 3248  220  75  87
              SNL 3252  240  98  111
              SNL 3256  260  87  101
              SNL 3260  280  91  106
              SNL 3264  300  95  111
              SNL 3268  320  98  115
              SNL 3272  340  106  124
              SNL 3276  360  121  141
              SNL 3280  380  114  135
              SNL 3284  400  117  139
              SNL 3288  410  124  147
































              1)  The oil level is measured from the base of the housing.
               Mark the min and max level on the oil level gauge.
