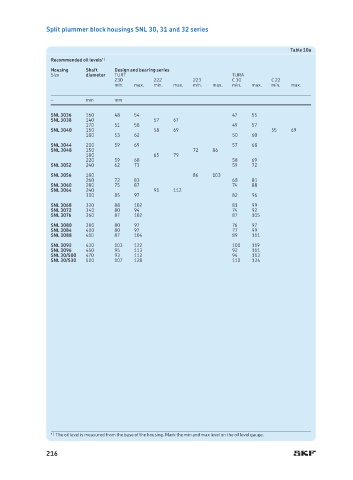

Split plummer block housings SNL 30, 31 and 32 series

Table 10a
Recommended oil levels 1)
Housing Shaft Design and bearing series
Size diameter TURT TURA
230 222 223 C 30 C 22
min. max. min. max. min. max. min. max. min. max.
– mm mm
SNL 3036 160 48 54 47 55
SNL 3038 140 57 67
170 51 58 49 57
SNL 3040 150 58 69 55 69
180 53 62 50 60
SNL 3044 200 59 69 57 68
SNL 3048 150 72 86
180 65 79
220 59 68 58 69
SNL 3052 240 62 73 59 72
SNL 3056 180 86 103
260 72 83 68 81
SNL 3060 280 75 87 74 88
SNL 3064 240 91 112
300 85 97 82 96
SNL 3068 320 88 102 81 99
SNL 3072 340 80 94 74 92
SNL 3076 360 87 102 87 105
SNL 3080 380 80 97 76 97
SNL 3084 400 80 97 77 99
SNL 3088 410 87 104 89 111
SNL 3092 430 103 122 100 119
SNL 3096 450 95 113 92 111
SNL 30/500 470 93 112 94 113
SNL 30/530 500 107 128 110 134

1) The oil level is measured from the base of the housing. Mark the min and max level on the oil level gauge.
