Design considerations
5

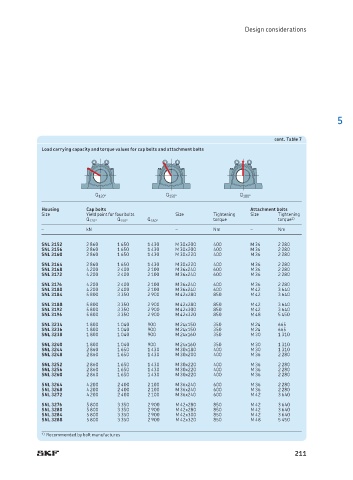

cont. Table 7
Load carrying capacity and torque values for cap bolts and attachment bolts
Q 120° Q 150° Q 180°
Housing Cap bolts Attachment bolts
Size Yield point for four bolts Size Tightening Size Tightening
torque torque 1)
Q 120° Q 150° Q 180°
– kN – Nm – Nm
SNL 3152 2 860 1 650 1 430 M 30x200 400 M 36 2 280
SNL 3156 2 860 1 650 1 430 M 30x200 400 M 36 2 280
SNL 3160 2 860 1 650 1 430 M 30x220 400 M 36 2 280
SNL 3164 2 860 1 650 1 430 M 30x220 400 M 36 2 280
SNL 3168 4 200 2 400 2 100 M 36x240 600 M 36 2 280
SNL 3172 4 200 2 400 2 100 M 36x240 600 M 36 2 280
SNL 3176 4 200 2 400 2 100 M 36x240 600 M 36 2 280
SNL 3180 4 200 2 400 2 100 M 36x240 600 M 42 3 640
SNL 3184 5 800 3 350 2 900 M 42x280 850 M 42 3 640
SNL 3188 5 800 3 350 2 900 M 42x280 850 M 42 3 640
SNL 3192 5 800 3 350 2 900 M 42x300 850 M 42 3 640
SNL 3196 5 800 3 350 2 900 M 42x320 850 M 48 5 450
SNL 3234 1 800 1 040 900 M 24x150 350 M 24 665
SNL 3236 1 800 1 040 900 M 24x150 350 M 24 665
SNL 3238 1 800 1 040 900 M 24x160 350 M 30 1 310
SNL 3240 1 800 1 040 900 M 24x160 350 M 30 1 310
SNL 3244 2 860 1 650 1 430 M 30x180 400 M 30 1 310
SNL 3248 2 860 1 650 1 430 M 30x200 400 M 36 2 280
SNL 3252 2 860 1 650 1 430 M 30x220 400 M 36 2 280
SNL 3256 2 860 1 650 1 430 M 30x220 400 M 36 2 280
SNL 3260 2 860 1 650 1 430 M 30x220 400 M 36 2 280
SNL 3264 4 200 2 400 2 100 M 36x240 600 M 36 2 280
SNL 3268 4 200 2 400 2 100 M 36x240 600 M 36 2 280
SNL 3272 4 200 2 400 2 100 M 36x240 600 M 42 3 640
SNL 3276 5 800 3 350 2 900 M 42x280 850 M 42 3 640
SNL 3280 5 800 3 350 2 900 M 42x280 850 M 42 3 640
SNL 3284 5 800 3 350 2 900 M 42x300 850 M 42 3 640
SNL 3288 5 800 3 350 2 900 M 42x320 850 M 48 5 450
1) Recommended by bolt manufactures
