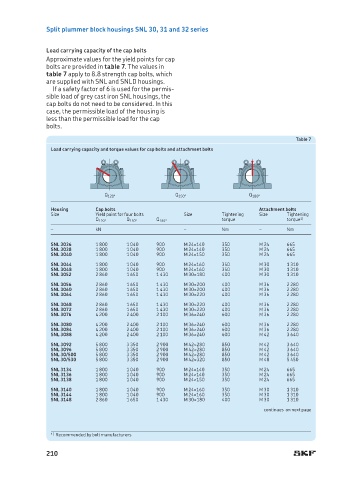

Split plummer block housings SNL 30, 31 and 32 series


             Load carrying capacity of the cap bolts
             Approximate values for the yield points for cap
             bolts are provided in table 7. The values in
             table 7 apply to 8.8 strength cap bolts, which
             are supplied with SNL and SNLD housings.
               If a safety factor of 6 is used for the permis-
             sible load of grey cast iron SNL housings, the
             cap bolts do not need to be considered. In this
             case, the permissible load of the housing is
             less than the permissible load for the cap
             bolts.
                                                                             Table 7
              Load carrying capacity and torque values for cap bolts and attachment bolts





                            Q 120°            Q 150°             Q 180°
              Housing     Cap bolts                                 Attachment bolts
              Size        Yield point for four bolts  Size  Tightening    Size  Tightening
                                                          torque           torque 1)
                          Q 120°  Q 150°  Q 180°
              –           kN                     –        Nm        –      Nm
              SNL 3036    1 800   1 040  900     M 24¥140  350      M 24   665
              SNL 3038    1 800   1 040  900     M 24¥140  350      M 24   665
              SNL 3040    1 800   1 040  900     M 24¥150  350      M 24   665
              SNL 3044    1 800   1 040  900     M 24¥160  350      M 30   1 310
              SNL 3048    1 800   1 040  900     M 24¥160  350      M 30   1 310
              SNL 3052    2 860   1 650  1 430   M 30¥180  400      M 30   1 310
              SNL 3056    2 860   1 650  1 430   M 30¥200  400      M 36   2 280
              SNL 3060    2 860   1 650  1 430   M 30¥200  400      M 36   2 280
              SNL 3064    2 860   1 650  1 430   M 30¥220  400      M 36   2 280
              SNL 3068    2 860   1 650  1 430   M 30¥220  400      M 36   2 280
              SNL 3072    2 860   1 650  1 430   M 30¥220  400      M 36   2 280
              SNL 3076    4 200   2 400  2 100   M 36¥240  600      M 36   2 280
              SNL 3080    4 200   2 400  2 100   M 36¥240  600      M 36   2 280
              SNL 3084    4 200   2 400  2 100   M 36¥240  600      M 36   2 280
              SNL 3088    4 200   2 400  2 100   M 36¥240  600      M 42   3 640
              SNL 3092    5 800   3 350  2 900   M 42¥280  850      M 42   3 640
              SNL 3096    5 800   3 350  2 900   M 42¥280  850      M 42   3 640
              SNL 30/500  5 800   3 350  2 900   M 42¥280  850      M 42   3 640
              SNL 30/530  5 800   3 350  2 900   M 42¥320  850      M 48   5 450
              SNL 3134    1 800   1 040  900     M 24¥140  350      M 24   665
              SNL 3136    1 800   1 040  900     M 24¥140  350      M 24   665
              SNL 3138    1 800   1 040  900     M 24¥150  350      M 24   665
              SNL 3140    1 800   1 040  900     M 24¥160  350      M 30   1 310
              SNL 3144    1 800   1 040  900     M 24¥160  350      M 30   1 310
              SNL 3148    2 860   1 650  1 430   M 30¥180  400      M 30   1 310
                                                                     continues  on next page


              1)  Recommended by bolt manufacturers
