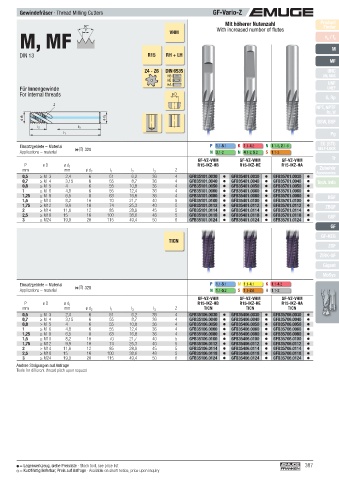

Page 387 - EMUGE

Gewindefräser · Thread Milling Cutters GF-Vario-Z

Mit höherer Nutenzahl Product
60° VHM With increased number of fl utes Finder
M, MF v / f z
P
c
DIN 13 R15 RH + LH M
MF
Z4 - Z6 DIN 6535 UNC
HB UN, UNS
HE
HA UNF
Für Innengewinde UNEF
For internal threads ø D
G, Rp
Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
l 1 Pg
EG (STI)
Einsatzgebiete – Material  328 P 1.1- 5.1 K 1.1- 4.2 N 1.1-5, 2.1-6 SELF-LOCK
Applications – material N 3.1-2 N 4.1-2, 5.2 S 1.1-3
Tr
GF-VZ-VHM GF-VZ-VHM GF-VZ-VHM
P ø D ø d 1 R15-IKZ-HB R15-IKZ-HE R15-IKZ-HA
mm mm ø d 2 l 1 l 2 l 3 Z Zubehör
Accessories
0,5 ≥ M 3 2,4 6 51 6,2 36 4 GFB35101.0030 GFB35401.0030 GFB35701.0030
0,7 ≥ M 4 3,15 6 55 8,7 36 4 GFB35101.0040 GFB35401.0040 GFB35701.0040 Tech. Info
0,8 ≥ M 5 4 6 55 10,8 36 4 GFB35101.0050 GFB35401.0050 GFB35701.0050
1 ≥ M 6 4,8 6 55 12,4 36 4 GFB35101.0060 GFB35401.0060 GFB35701.0060
1,25 ≥ M 8 6,5 8 63 16,8 36 4 GFB35101.0080 GFB35401.0080 GFB35701.0080 BGF
1,5 ≥ M10 8,2 10 70 21,7 40 5 GFB35101.0100 GFB35401.0100 GFB35701.0100
1,75 ≥ M12 9,9 10 74 25,3 40 5 GFB35101.0112 GFB35401.0112 GFB35701.0112 ZBGF
2 ≥ M14 11,6 12 85 28,9 45 5 GFB35101.0114 GFB35401.0114 GFB35701.0114
2,5 ≥ M18 15 16 100 38,6 48 5 GFB35101.0118 GFB35401.0118 GFB35701.0118 GSF
3 ≥ M24 19,9 20 115 49,4 50 6 GFB35101.0124 GFB35401.0124 GFB35701.0124
GF
GF-KEG
TICN
ZGF
ZIRK-GF

Gigant
MoSys
Einsatzgebiete – Material P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
Applications – material  328 N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
GF-VZ-VHM GF-VZ-VHM GF-VZ-VHM
P ø D ø d 1 R15-IKZ-HB R15-IKZ-HE R15-IKZ-HA
mm mm ø d 2 l 1 l 2 l 3 Z TICN TICN TICN
0,5 ≥ M 3 2,4 6 51 6,2 36 4 GFB35106.0030 GFB35406.0030 GFB35706.0030
0,7 ≥ M 4 3,15 6 55 8,7 36 4 GFB35106.0040 GFB35406.0040 GFB35706.0040
0,8 ≥ M 5 4 6 55 10,8 36 4 GFB35106.0050 GFB35406.0050 GFB35706.0050
1 ≥ M 6 4,8 6 55 12,4 36 4 GFB35106.0060 GFB35406.0060 GFB35706.0060
1,25 ≥ M 8 6,5 8 63 16,8 36 4 GFB35106.0080 GFB35406.0080 GFB35706.0080
1,5 ≥ M10 8,2 10 70 21,7 40 5 GFB35106.0100 GFB35406.0100 GFB35706.0100
1,75 ≥ M12 9,9 10 74 25,3 40 5 GFB35106.0112 GFB35406.0112 GFB35706.0112
2 ≥ M14 11,6 12 85 28,9 45 5 GFB35106.0114 GFB35406.0114 GFB35706.0114
2,5 ≥ M18 15 16 100 38,6 48 5 GFB35106.0118 GFB35406.0118 GFB35706.0118
3 ≥ M24 19,9 20 115 49,4 50 6 GFB35106.0124 GFB35406.0124 GFB35706.0124

Andere Steigungen auf Anfrage
Tools for different thread pitch upon request

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 387
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
