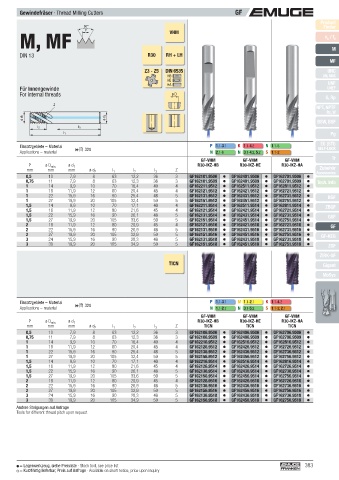

Gewindefräser · Thread Milling Cutters GF
Product
60° VHM Finder
M, MF v / f z
P
c

DIN 13 R30 RH + LH M
MF
Z3 - Z5 DIN 6535 UNC
HB UN, UNS
HE
HA UNF
Für Innengewinde UNEF
For internal threads ø D
G, Rp
Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
l 1 Pg
EG (STI)
Einsatzgebiete – Material  328 P 1.1- 3.1 K 1.1- 4.2 N 1.1-5 SELF-LOCK
Applications – material N 2.1-6 N 3.1- 4.2, 5.2 S 1.1-2
Tr
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 R30-IKZ-HB R30-IKZ-HE R30-IKZ-HA
mm mm mm ø d 2 l 1 l 2 l 3 Z Zubehör
0,5 10 7,9 8 63 12,2 36 3 GF162101.9506 GF162401.9506 GF162701.9506 Accessories
0,75 11 7,9 8 63 12,3 36 3 GF162101.9509 GF162401.9509 GF162701.9509 Tech. Info
1 14 9,9 10 70 16,4 40 4 GF162211.9512 GF162511.9512 GF162811.9512
1 16 11,9 12 80 20,4 45 4 GF162121.9512 GF162421.9512 GF162721.9512
1 22 15,9 16 90 25,4 48 5 GF162131.9512 GF162431.9512 GF162731.9512 BGF
1 27 19,9 20 105 32,4 50 5 GF162151.9512 GF162451.9512 GF162751.9512
1,5 14 9,9 10 70 17,1 40 4 GF162211.9514 GF162511.9514 GF162811.9514 ZBGF
1,5 16 11,9 12 80 21,6 45 4 GF162121.9514 GF162421.9514 GF162721.9514
1,5 22 15,9 16 90 26,1 48 5 GF162131.9514 GF162431.9514 GF162731.9514 GSF
1,5 27 19,9 20 105 33,6 50 5 GF162151.9514 GF162451.9514 GF162751.9514
2 18 11,9 12 80 20,9 45 4 GF162121.9516 GF162421.9516 GF162721.9516 GF
2 22 15,9 16 90 26,9 48 5 GF162131.9516 GF162431.9516 GF162731.9516
2 27 19,9 20 105 32,9 50 5 GF162151.9516 GF162451.9516 GF162751.9516 GF-KEG
3 24 15,9 16 90 28,3 48 5 GF162131.9518 GF162431.9518 GF162731.9518
3 30 19,9 20 105 34,9 50 5 GF162151.9518 GF162451.9518 GF162751.9518 ZGF
ZIRK-GF
TICN Gigant

MoSys

Einsatzgebiete – Material P 1.1- 3.1 M 1.1- 2.1 K 1.1- 4.2
Applications – material  328 N 1.1- 2.7 N 3.1- 5.2 S 1.1-2, 2.1
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 R30-IKZ-HB R30-IKZ-HE R30-IKZ-HA
mm mm mm ø d 2 l 1 l 2 l 3 Z TICN TICN TICN
0,5 10 7,9 8 63 12,2 36 3 GF162106.9506 GF162406.9506 GF162706.9506
0,75 11 7,9 8 63 12,3 36 3 GF162106.9509 GF162406.9509 GF162706.9509
1 14 9,9 10 70 16,4 40 4 GF162216.9512 GF162516.9512 GF162816.9512
1 16 11,9 12 80 20,4 45 4 GF162126.9512 GF162426.9512 GF162726.9512
1 22 15,9 16 90 25,4 48 5 GF162136.9512 GF162436.9512 GF162736.9512
1 27 19,9 20 105 32,4 50 5 GF162156.9512 GF162456.9512 GF162756.9512
1,5 14 9,9 10 70 17,1 40 4 GF162216.9514 GF162516.9514 GF162816.9514
1,5 16 11,9 12 80 21,6 45 4 GF162126.9514 GF162426.9514 GF162726.9514
1,5 22 15,9 16 90 26,1 48 5 GF162136.9514 GF162436.9514 GF162736.9514
1,5 27 19,9 20 105 33,6 50 5 GF162156.9514 GF162456.9514 GF162756.9514
2 18 11,9 12 80 20,9 45 4 GF162126.9516 GF162426.9516 GF162726.9516
2 22 15,9 16 90 26,9 48 5 GF162136.9516 GF162436.9516 GF162736.9516
2 27 19,9 20 105 32,9 50 5 GF162156.9516 GF162456.9516 GF162756.9516
3 24 15,9 16 90 28,3 48 5 GF162136.9518 GF162436.9518 GF162736.9518
3 30 19,9 20 105 34,9 50 5 GF162156.9518 GF162456.9518 GF162756.9518

Andere Steigungen auf Anfrage
Tools for different thread pitch upon request

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 383
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
