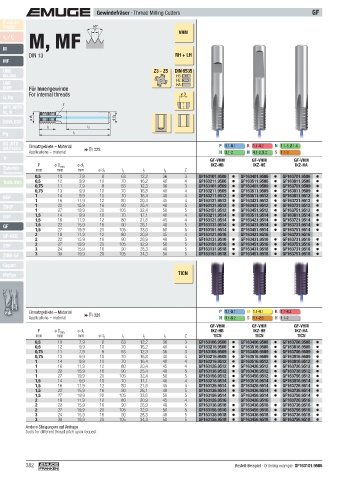

Page 382 - EMUGE

Gewindefräser · Thread Milling Cutters GF
Product
Finder 60°
M, MF
P
v / f VHM
z
c
M
DIN 13 RH + LH
MF
UNC Z3 - Z5 DIN 6535
UN, UNS HB
HE
UNF HA
UNEF Für Innengewinde
For internal threads ø D
G, Rp
Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
Pg l 1
EG (STI) P 1.1- 5.1 K 1.1- 4.2 N 1.1-5, 2.1-6
SELF-LOCK Einsatzgebiete – Material  328
Applications – material N 3.1-2 N 4.1-2, 5.2 S 1.1-3
Tr
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 IKZ-HB IKZ-HE IKZ-HA
Zubehör mm mm mm ø d l l l Z
Accessories 2 1 2 3
0,5 10 7,9 8 63 12,2 36 3 GF163101.9506 GF163401.9506 GF163701.9506
Tech. Info 0,5 12 9,9 10 70 16,2 40 4 GF163211.9506 GF163511.9506 GF163811.9506
0,75 11 7,9 8 63 12,3 36 3 GF163101.9509 GF163401.9509 GF163701.9509
0,75 13 9,9 10 70 16,8 40 4 GF163211.9509 GF163511.9509 GF163811.9509
BGF 1 14 9,9 10 70 16,4 40 4 GF163211.9512 GF163511.9512 GF163811.9512
1 16 11,9 12 80 20,4 45 4 GF163121.9512 GF163421.9512 GF163721.9512
ZBGF 1 22 15,9 16 90 25,4 48 5 GF163131.9512 GF163431.9512 GF163731.9512
1 27 19,9 20 105 32,4 50 5 GF163151.9512 GF163451.9512 GF163751.9512
GSF 1,5 14 9,9 10 70 17,1 40 4 GF163211.9514 GF163511.9514 GF163811.9514
1,5 16 11,9 12 80 21,6 45 4 GF163121.9514 GF163421.9514 GF163721.9514
GF 1,5 22 15,9 16 90 26,1 48 5 GF163131.9514 GF163431.9514 GF163731.9514
1,5 27 19,9 20 105 33,6 50 5 GF163151.9514 GF163451.9514 GF163751.9514
GF-KEG 2 18 11,9 12 80 20,9 45 4 GF163121.9516 GF163421.9516 GF163721.9516
2 22 15,9 16 90 26,9 48 5 GF163131.9516 GF163431.9516 GF163731.9516
ZGF 2 27 19,9 20 105 32,9 50 5 GF163151.9516 GF163451.9516 GF163751.9516
3 24 15,9 16 90 28,3 48 5 GF163131.9518 GF163431.9518 GF163731.9518
ZIRK-GF 3 30 19,9 20 105 34,3 50 5 GF163151.9518 GF163451.9518 GF163751.9518

Gigant
MoSys TICN

Einsatzgebiete – Material P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
Applications – material  328 N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 IKZ-HB IKZ-HE IKZ-HA
mm mm mm ø d 2 l 1 l 2 l 3 Z TICN TICN TICN
0,5 10 7,9 8 63 12,2 36 3 GF163106.9506 GF163406.9506 GF163706.9506
0,5 12 9,9 10 70 16,2 40 4 GF163216.9506 GF163516.9506 GF163816.9506
0,75 11 7,9 8 63 12,3 36 3 GF163106.9509 GF163406.9509 GF163706.9509
0,75 13 9,9 10 70 16,8 40 4 GF163216.9509 GF163516.9509 GF163816.9509
1 14 9,9 10 70 16,4 40 4 GF163216.9512 GF163516.9512 GF163816.9512
1 16 11,9 12 80 20,4 45 4 GF163126.9512 GF163426.9512 GF163726.9512
1 22 15,9 16 90 25,4 48 5 GF163136.9512 GF163436.9512 GF163736.9512
1 27 19,9 20 105 32,4 50 5 GF163156.9512 GF163456.9512 GF163756.9512
1,5 14 9,9 10 70 17,1 40 4 GF163216.9514 GF163516.9514 GF163816.9514
1,5 16 11,9 12 80 21,6 45 4 GF163126.9514 GF163426.9514 GF163726.9514
1,5 22 15,9 16 90 26,1 48 5 GF163136.9514 GF163436.9514 GF163736.9514
1,5 27 19,9 20 105 33,6 50 5 GF163156.9514 GF163456.9514 GF163756.9514
2 18 11,9 12 80 20,9 45 4 GF163126.9516 GF163426.9516 GF163726.9516
2 22 15,9 16 90 26,9 48 5 GF163136.9516 GF163436.9516 GF163736.9516
2 27 19,9 20 105 32,9 50 5 GF163156.9516 GF163456.9516 GF163756.9516
3 24 15,9 16 90 28,3 48 5 GF163136.9518 GF163436.9518 GF163736.9518
3 30 19,9 20 105 34,3 50 5 GF163156.9518 GF163456.9518 GF163756.9518

Andere Steigungen auf Anfrage
Tools for different thread pitch upon request

382 Bestell-Beispiel · Ordering example: GF163101.9506
