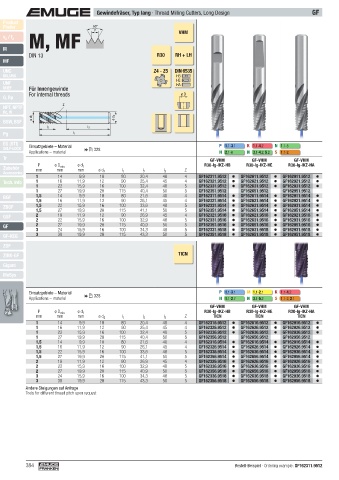

Page 384 - EMUGE

Gewindefräser, Typ lang · Thread Milling Cutters, Long Design GF
Product
Finder 60°
P
M, MF
v / f VHM
z
c
M
DIN 13 R30 RH + LH
MF
UNC Z4 - Z5 DIN 6535
UN, UNS HB
HE
UNF HA
UNEF Für Innengewinde
For internal threads ø D
G, Rp
Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
Pg l 1
EG (STI) P 1.1- 3.1 K 1.1- 4.2 N 1.1-5
SELF-LOCK Einsatzgebiete – Material  328
Applications – material N 2.1-6 N 3.1- 4.2, 5.2 S 1.1-2
Tr
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 R30-lg-IKZ-HB R30-lg-IKZ-HE R30-lg-IKZ-HA
Zubehör mm mm mm ø d l l l Z
Accessories 2 1 2 3
1 14 9,9 10 80 20,4 40 4 GF162311.9512 GF162611.9512 GF162911.9512
Tech. Info 1 16 11,9 12 90 25,4 45 4 GF162321.9512 GF162621.9512 GF162921.9512
1 22 15,9 16 100 32,4 48 5 GF162331.9512 GF162631.9512 GF162931.9512
1 27 19,9 20 115 40,4 50 5 GF162351.9512 GF162651.9512 GF162951.9512
BGF 1,5 14 9,9 10 80 21,6 40 4 GF162311.9514 GF162611.9514 GF162911.9514
1,5 16 11,9 12 90 26,1 45 4 GF162321.9514 GF162621.9514 GF162921.9514
ZBGF 1,5 22 15,9 16 100 33,6 48 5 GF162331.9514 GF162631.9514 GF162931.9514
1,5 27 19,9 20 115 41,1 50 5 GF162351.9514 GF162651.9514 GF162951.9514
GSF 2 18 11,9 12 90 26,9 45 4 GF162321.9516 GF162621.9516 GF162921.9516
2 22 15,9 16 100 32,9 48 5 GF162331.9516 GF162631.9516 GF162931.9516
GF 2 27 19,9 20 115 40,9 50 5 GF162351.9516 GF162651.9516 GF162951.9516
3 24 15,9 16 100 34,3 48 5 GF162331.9518 GF162631.9518 GF162931.9518
GF-KEG 3 30 19,9 20 115 43,3 50 5 GF162351.9518 GF162651.9518 GF162951.9518
ZGF
ZIRK-GF TICN

Gigant
MoSys

Einsatzgebiete – Material P 1.1- 3.1 M 1.1- 2.1 K 1.1- 4.2
Applications – material  328 N 1.1- 2.7 N 3.1- 5.2 S 1.1-2, 2.1
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 R30-lg-IKZ-HB R30-lg-IKZ-HE R30-lg-IKZ-HA
mm mm mm ø d 2 l 1 l 2 l 3 Z TICN TICN TICN
1 14 9,9 10 80 20,4 40 4 GF162316.9512 GF162616.9512 GF162916.9512
1 16 11,9 12 90 25,4 45 4 GF162326.9512 GF162626.9512 GF162926.9512
1 22 15,9 16 100 32,4 48 5 GF162336.9512 GF162636.9512 GF162936.9512
1 27 19,9 20 115 40,4 50 5 GF162356.9512 GF162656.9512 GF162956.9512
1,5 14 9,9 10 80 21,6 40 4 GF162316.9514 GF162616.9514 GF162916.9514
1,5 16 11,9 12 90 26,1 45 4 GF162326.9514 GF162626.9514 GF162926.9514
1,5 22 15,9 16 100 33,6 48 5 GF162336.9514 GF162636.9514 GF162936.9514
1,5 27 19,9 20 115 41,1 50 5 GF162356.9514 GF162656.9514 GF162956.9514
2 18 11,9 12 90 26,9 45 4 GF162326.9516 GF162626.9516 GF162926.9516
2 22 15,9 16 100 32,9 48 5 GF162336.9516 GF162636.9516 GF162936.9516
2 27 19,9 20 115 40,9 50 5 GF162356.9516 GF162656.9516 GF162956.9516
3 24 15,9 16 100 34,3 48 5 GF162336.9518 GF162636.9518 GF162936.9518
3 30 19,9 20 115 43,3 50 5 GF162356.9518 GF162656.9518 GF162956.9518
Andere Steigungen auf Anfrage
Tools for different thread pitch upon request

384 Bestell-Beispiel · Ordering example: GF162311.9512
