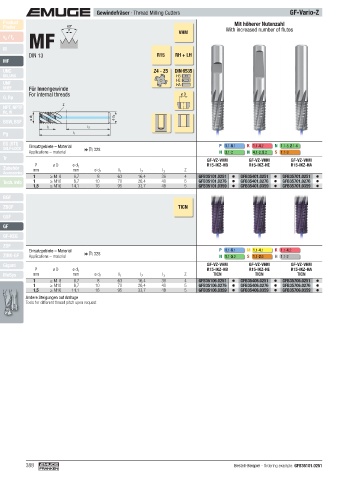

Page 388 - EMUGE

Gewindefräser · Thread Milling Cutters GF-Vario-Z
Product Mit höherer Nutenzahl
Finder 60° With increased number of fl utes
P
MF
v / f VHM
z
c
M
DIN 13 R15 RH + LH
MF
UNC Z4 - Z5 DIN 6535
UN, UNS HB
HE
UNF HA
UNEF Für Innengewinde
For internal threads ø D
G, Rp
Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
Pg l 1
EG (STI) P 1.1- 5.1 K 1.1- 4.2 N 1.1-5, 2.1-6
SELF-LOCK Einsatzgebiete – Material  328
Applications – material N 3.1-2 N 4.1-2, 5.2 S 1.1-3
Tr
GF-VZ-VHM GF-VZ-VHM GF-VZ-VHM
P ø D ø d 1 R15-IKZ-HB R15-IKZ-HE R15-IKZ-HA
Zubehör mm mm ø d l l l Z
Accessories 2 1 2 3
1 ≥ M 8 6,7 8 63 16,4 36 4 GFB35101.0251 GFB35401.0251 GFB35701.0251
Tech. Info 1 ≥ M10 8,7 10 70 20,4 40 5 GFB35101.0276 GFB35401.0276 GFB35701.0276
1,5 ≥ M16 14,1 16 95 33,7 48 5 GFB35101.0359 GFB35401.0359 GFB35701.0359
BGF
ZBGF TICN
GSF
GF
GF-KEG
ZGF
Einsatzgebiete – Material P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
ZIRK-GF Applications – material  328 N 1.1- 5.2 S 1.1- 2.6 H 1.1-2

Gigant GF-VZ-VHM GF-VZ-VHM GF-VZ-VHM
P ø D ø d 1 R15-IKZ-HB R15-IKZ-HE R15-IKZ-HA
MoSys mm mm ø d 2 l 1 l 2 l 3 Z TICN TICN TICN
1 ≥ M 8 6,7 8 63 16,4 36 4 GFB35106.0251 GFB35406.0251 GFB35706.0251
1 ≥ M10 8,7 10 70 20,4 40 5 GFB35106.0276 GFB35406.0276 GFB35706.0276
1,5 ≥ M16 14,1 16 95 33,7 48 5 GFB35106.0359 GFB35406.0359 GFB35706.0359
Andere Steigungen auf Anfrage

Tools for different thread pitch upon request

388 Bestell-Beispiel · Ordering example: GFB35101.0251
