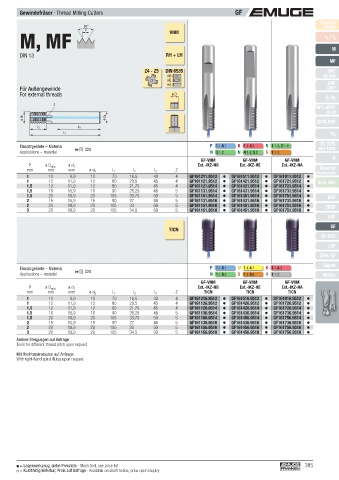

Page 385 - EMUGE

Gewindefräser · Thread Milling Cutters GF
Product
60° VHM Finder
M, MF v / f z
P
c

DIN 13 RH + LH M
MF
Z4 - Z5 DIN 6535 UNC
HB UN, UNS
HE
HA UNF
Für Außengewinde UNEF
For external threads ø D
G, Rp
Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
l 1 Pg
EG (STI)
Einsatzgebiete – Material  328 P 1.1- 5.1 K 1.1- 4.2 N 1.1-5, 2.1-6 SELF-LOCK
Applications – material N 3.1-2 N 4.1-2, 5.2 S 1.1-3
Tr
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 Ext.-IKZ-HB Ext.-IKZ-HE Ext.-IKZ-HA
mm mm mm ø d 2 l 1 l 2 l 3 Z Zubehör
Accessories
1 10 9,9 10 70 16,5 40 4 GF161211.9512 GF161511.9512 GF161811.9512
1 12 11,9 12 80 20,5 45 4 GF161121.9512 GF161421.9512 GF161721.9512 Tech. Info
1,5 12 11,9 12 80 21,75 45 4 GF161121.9514 GF161421.9514 GF161721.9514
1,5 16 15,9 16 90 26,25 48 5 GF161131.9514 GF161431.9514 GF161731.9514
1,5 20 19,9 20 105 33,75 50 5 GF161151.9514 GF161451.9514 GF161751.9514 BGF
2 16 15,9 16 90 27 48 5 GF161131.9516 GF161431.9516 GF161731.9516
2 20 19,9 20 105 33 50 5 GF161151.9516 GF161451.9516 GF161751.9516 ZBGF
3 20 19,9 20 105 34,5 50 5 GF161151.9518 GF161451.9518 GF161751.9518
GSF
GF
TICN
GF-KEG
ZGF
ZIRK-GF

Gigant
Einsatzgebiete – Material  328 P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
Applications – material N 1.1- 5.2 S 1.1- 2.6 H 1.1-2 MoSys
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 Ext.-IKZ-HB Ext.-IKZ-HE Ext.-IKZ-HA
mm mm mm ø d 2 l 1 l 2 l 3 Z TICN TICN TICN
1 10 9,9 10 70 16,5 40 4 GF161216.9512 GF161516.9512 GF161816.9512
1 12 11,9 12 80 20,5 45 4 GF161126.9512 GF161426.9512 GF161726.9512
1,5 12 11,9 12 80 21,75 45 4 GF161126.9514 GF161426.9514 GF161726.9514
1,5 16 15,9 16 90 26,25 48 5 GF161136.9514 GF161436.9514 GF161736.9514
1,5 20 19,9 20 105 33,75 50 5 GF161156.9514 GF161456.9514 GF161756.9514
2 16 15,9 16 90 27 48 5 GF161136.9516 GF161436.9516 GF161736.9516
2 20 19,9 20 105 33 50 5 GF161156.9516 GF161456.9516 GF161756.9516
3 20 19,9 20 105 34,5 50 5 GF161156.9518 GF161456.9518 GF161756.9518
Andere Steigungen auf Anfrage
Tools for different thread pitch upon request
Mit Rechtsspiralnuten auf Anfrage
With right-hand spiral fl utes upon request

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 385
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
