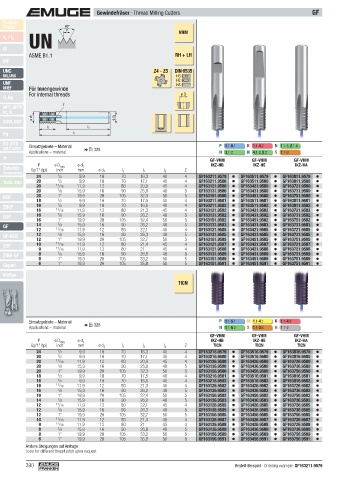

Gewindefräser · Thread Milling Cutters GF
Product
Finder 60°
UN
P
v / f VHM
c
z
M
ASME B1.1 RH + LH
MF
UNC Z4 - Z5 DIN 6535
UN, UNS HB
HE
UNF HA
UNEF Für Innengewinde
For internal threads ø D
G, Rp
Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
Pg l 1
EG (STI) P 1.1- 5.1 K 1.1- 4.2 N 1.1-5, 2.1-6
SELF-LOCK Einsatzgebiete – Material  328
Applications – material N 3.1-2 N 4.1-2, 5.2 S 1.1-3
Tr
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 IKZ-HB IKZ-HE IKZ-HA
Zubehör Gg/1" (tpi) inch mm ø d l l l Z
Accessories 2 1 2 3
24 1 /2 9,9 10 70 16,3 40 4 GF163211.9579 GF163511.9579 GF163811.9579
Tech. Info 20 1 /2 9,9 10 70 17,1 40 4 GF163211.9580 GF163511.9580 GF163811.9580
20 11 /16 11,9 12 80 20,9 45 4 GF163121.9580 GF163421.9580 GF163721.9580
20 7 /8 15,9 16 90 25,9 48 5 GF163131.9580 GF163431.9580 GF163731.9580
BGF 20 1" 19,9 20 105 32,3 50 5 GF163151.9580 GF163451.9580 GF163751.9580
18 1 /2 9,9 10 70 17,5 40 4 GF163211.9581 GF163511.9581 GF163811.9581
ZBGF 16 1 /2 9,9 10 70 16,6 40 4 GF163211.9582 GF163511.9582 GF163811.9582
16 11 /16 11,9 12 80 21,3 45 4 GF163121.9582 GF163421.9582 GF163721.9582
GSF 16 7 /8 15,9 16 90 26,2 48 5 GF163131.9582 GF163431.9582 GF163731.9582
16 1" 19,9 20 105 32,4 50 5 GF163151.9582 GF163451.9582 GF163751.9582
GF 14 7 /8 15,9 16 90 26,2 48 5 GF163131.9583 GF163431.9583 GF163731.9583
12 11 /16 11,9 12 80 22,1 45 4 GF163121.9585 GF163421.9585 GF163721.9585
GF-KEG 12 7 /8 15,9 16 90 26,3 48 5 GF163131.9585 GF163431.9585 GF163731.9585
12 1" 19,9 20 105 32,7 50 5 GF163151.9585 GF163451.9585 GF163751.9585
ZGF 10 11 /16 11,9 12 80 21,4 45 4 GF163121.9587 GF163421.9587 GF163721.9587
9 11 /16 11,9 12 80 21 45 4 GF163121.9588 GF163421.9588 GF163721.9588
ZIRK-GF 8 7 /8 15,9 16 90 26,8 48 5 GF163131.9589 GF163431.9589 GF163731.9589
8 1" 19,9 20 105 33,2 50 5 GF163151.9589 GF163451.9589 GF163751.9589
Gigant 6 1" 19,9 20 105 35,8 50 5 GF163151.9591 GF163451.9591 GF163751.9591
MoSys
TICN

Einsatzgebiete – Material P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
Applications – material  328 N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 IKZ-HB IKZ-HE IKZ-HA
Gg/1" (tpi) inch mm ø d 2 l 1 l 2 l 3 Z TICN TICN TICN
24 1 /2 9,9 10 70 16,3 40 4 GF163216.9579 GF163516.9579 GF163816.9579
20 1 /2 9,9 10 70 17,1 40 4 GF163216.9580 GF163516.9580 GF163816.9580
20 11 /16 11,9 12 80 20,9 45 4 GF163126.9580 GF163426.9580 GF163726.9580
20 7 /8 15,9 16 90 25,9 48 5 GF163136.9580 GF163436.9580 GF163736.9580
20 1" 19,9 20 105 32,3 50 5 GF163156.9580 GF163456.9580 GF163756.9580
18 1 /2 9,9 10 70 17,5 40 4 GF163216.9581 GF163516.9581 GF163816.9581
16 1 /2 9,9 10 70 16,6 40 4 GF163216.9582 GF163516.9582 GF163816.9582
16 11 /16 11,9 12 80 21,3 45 4 GF163126.9582 GF163426.9582 GF163726.9582
16 7 /8 15,9 16 90 26,2 48 5 GF163136.9582 GF163436.9582 GF163736.9582
16 1" 19,9 20 105 32,4 50 5 GF163156.9582 GF163456.9582 GF163756.9582
14 7 /8 15,9 16 90 26,2 48 5 GF163136.9583 GF163436.9583 GF163736.9583
12 11 /16 11,9 12 80 22,1 45 4 GF163126.9585 GF163426.9585 GF163726.9585
12 7 /8 15,9 16 90 26,3 48 5 GF163136.9585 GF163436.9585 GF163736.9585
12 1" 19,9 20 105 32,7 50 5 GF163156.9585 GF163456.9585 GF163756.9585
10 11 /16 11,9 12 80 21,4 45 4 GF163126.9587 GF163426.9587 GF163726.9587
9 11 /16 11,9 12 80 21 45 4 GF163126.9588 GF163426.9588 GF163726.9588
8 7 /8 15,9 16 90 26,8 48 5 GF163136.9589 GF163436.9589 GF163736.9589
8 1" 19,9 20 105 33,2 50 5 GF163156.9589 GF163456.9589 GF163756.9589
6 1" 19,9 20 105 35,8 50 5 GF163156.9591 GF163456.9591 GF163756.9591

Andere Steigungen auf Anfrage
Tools for different thread pitch upon request
390 Bestell-Beispiel · Ordering example: GF163211.9579
