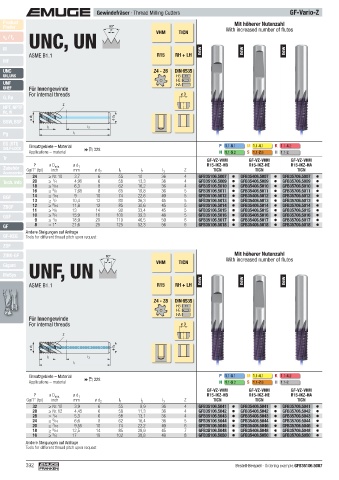

Gewindefräser · Thread Milling Cutters GF-Vario-Z
Product Mit höherer Nutenzahl
Finder 60° With increased number of flutes
UNC, UN
P
v / f VHM TICN
c
z
M new new new
ASME B1.1 R15 RH + LH
MF
UNC Z4 - Z6 DIN 6535
UN, UNS HB
HE
UNF HA
UNEF Für Innengewinde
For internal threads ø D
G, Rp
Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
Pg l 1
EG (STI) P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
SELF-LOCK Einsatzgebiete – Material  328
Applications – material N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
Tr
GF-VZ-VHM GF-VZ-VHM GF-VZ-VHM
P ø D min. ø d 1 R15-IKZ-HB R15-IKZ-HE R15-IKZ-HA
Zubehör Gg/1" (tpi) inch mm ø d l l l Z TICN TICN TICN
Accessories 2 1 2 3
24 ≥ Nr. 10 3,7 6 55 10 36 4 GFB35106.5007 GFB35406.5007 GFB35706.5007
1
Tech. Info 20 ≥ /4 4,95 6 58 13,3 36 4 GFB35106.5009 GFB35406.5009 GFB35706.5009
5
18 ≥ /16 6,3 8 62 16,2 36 4 GFB35106.5010 GFB35406.5010 GFB35706.5010
3
16 ≥ /8 7,65 8 65 19,8 36 5 GFB35106.5011 GFB35406.5011 GFB35706.5011
7
BGF 14 ≥ /16 9 10 74 22,6 40 5 GFB35106.5012 GFB35406.5012 GFB35706.5012
1
13 ≥ /2 10,4 12 80 26,3 45 5 GFB35106.5013 GFB35406.5013 GFB35706.5013
9
ZBGF 12 ≥ /16 11,8 12 85 30,6 45 5 GFB35106.5014 GFB35406.5014 GFB35706.5014
5
11 ≥ /8 13 14 90 33,4 45 5 GFB35106.5015 GFB35406.5015 GFB35706.5015
3
GSF 10 ≥ /4 15,9 16 100 39,3 48 5 GFB35106.5016 GFB35406.5016 GFB35706.5016
7
9 ≥ /8 18,9 20 110 46,5 50 6 GFB35106.5017 GFB35406.5017 GFB35706.5017
GF 8 ≥ 1" 21,6 25 125 52,3 56 6 GFB35106.5018 GFB35406.5018 GFB35706.5018

Andere Steigungen auf Anfrage
GF-KEG Tools for different thread pitch upon request
ZGF
Mit höherer Nutenzahl
ZIRK-GF 60° With increased number of flutes
UNF, UN
Gigant P VHM TICN
MoSys
ASME B1.1 R15 RH + LH new new new
Z4 - Z8 DIN 6535
HB
HE
HA
Für Innengewinde
For internal threads ø D
Z
ø d 1 ø d 2
l 2 l 3
l 1

Einsatzgebiete – Material P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
Applications – material  328 N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
GF-VZ-VHM GF-VZ-VHM GF-VZ-VHM
P ø D min. ø d 1 R15-IKZ-HB R15-IKZ-HE R15-IKZ-HA
Gg/1" (tpi) inch mm ø d 2 l 1 l 2 l 3 Z TICN TICN TICN
32 ≥ Nr. 10 3,9 6 55 9,9 36 4 GFB35106.5041 GFB35406.5041 GFB35706.5041
28 ≥ Nr. 12 4,45 6 58 11,3 36 4 GFB35106.5042 GFB35406.5042 GFB35706.5042
1
28 ≥ /4 5,3 6 58 13,1 36 4 GFB35106.5043 GFB35406.5043 GFB35706.5043
5
24 ≥ /16 6,6 8 62 16,4 36 5 GFB35106.5044 GFB35406.5044 GFB35706.5044
7
20 ≥ /16 9,55 10 74 22,2 40 6 GFB35106.5046 GFB35406.5046 GFB35706.5046
9
18 ≥ /16 12,5 14 85 28,9 45 7 GFB35106.5048 GFB35406.5048 GFB35706.5048
3
16 ≥ /4 17 18 102 38,8 48 8 GFB35106.5050 GFB35406.5050 GFB35706.5050
Andere Steigungen auf Anfrage
Tools for different thread pitch upon request
392 Bestell-Beispiel · Ordering example:GFB35106.5007
