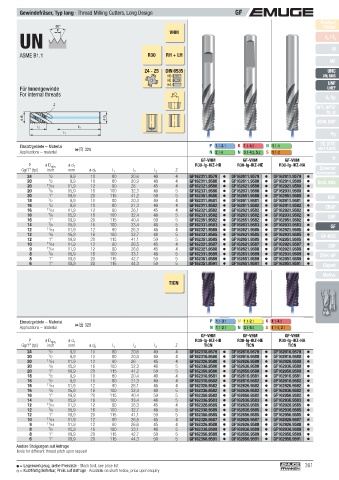

Gewindefräser, Typ lang · Thread Milling Cutters, Long Design GF
Product
60° VHM Finder
UN v / f z
P
c

ASME B1.1 R30 RH + LH M
MF
Z4 - Z5 DIN 6535 UNC
HB UN, UNS
HE
HA UNF
Für Innengewinde UNEF
For internal threads ø D
G, Rp
Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
l 1 Pg
EG (STI)
Einsatzgebiete – Material  328 P 1.1- 3.1 K 1.1- 4.2 N 1.1-5 SELF-LOCK
Applications – material N 2.1-6 N 3.1- 4.2, 5.2 S 1.1-2
Tr
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 R30-lg-IKZ-HB R30-lg-IKZ-HE R30-lg-IKZ-HA
Gg/1" (tpi) inch mm ø d 2 l 1 l 2 l 3 Z Zubehör
Accessories
24 1 /2 9,9 10 80 20,6 40 4 GF162311.9579 GF162611.9579 GF162911.9579
20 1 /2 9,9 10 80 20,9 40 4 GF162311.9580 GF162611.9580 GF162911.9580 Tech. Info
20 11 /16 11,9 12 90 26 45 4 GF162321.9580 GF162621.9580 GF162921.9580
20 7 /8 15,9 16 100 32,3 48 5 GF162331.9580 GF162631.9580 GF162931.9580
20 1" 19,9 20 115 41,2 50 5 GF162351.9580 GF162651.9580 GF162951.9580 BGF
18 1 /2 9,9 10 80 20,4 40 4 GF162311.9581 GF162611.9581 GF162911.9581
16 1 /2 9,9 10 80 21,3 40 4 GF162311.9582 GF162611.9582 GF162911.9582 ZBGF
16 11 /16 11,9 12 90 26,1 45 4 GF162321.9582 GF162621.9582 GF162921.9582
16 7 /8 15,9 16 100 32,4 48 5 GF162331.9582 GF162631.9582 GF162931.9582 GSF
16 1" 19,9 20 115 40,4 50 5 GF162351.9582 GF162651.9582 GF162951.9582
14 7 /8 15,9 16 100 33,4 48 5 GF162331.9583 GF162631.9583 GF162931.9583 GF
12 11 /16 11,9 12 90 26,3 45 4 GF162321.9585 GF162621.9585 GF162921.9585
12 7 /8 15,9 16 100 32,7 48 5 GF162331.9585 GF162631.9585 GF162931.9585 GF-KEG
12 1" 19,9 20 115 41,1 50 5 GF162351.9585 GF162651.9585 GF162951.9585
10 11 /16 11,9 12 90 26,5 45 4 GF162321.9587 GF162621.9587 GF162921.9587 ZGF
9 11 /16 11,9 12 90 26,6 45 4 GF162321.9588 GF162621.9588 GF162921.9588
8 7 /8 15,9 16 100 33,1 48 5 GF162331.9589 GF162631.9589 GF162931.9589 ZIRK-GF
8 1" 19,9 20 115 42,7 50 5 GF162351.9589 GF162651.9589 GF162951.9589
6 1" 19,9 20 115 44,3 50 5 GF162351.9591 GF162651.9591 GF162951.9591 Gigant

MoSys
TICN

Einsatzgebiete – Material P 1.1- 3.1 M 1.1- 2.1 K 1.1- 4.2
Applications – material  328 N 1.1- 2.7 N 3.1- 5.2 S 1.1-2, 2.1
GF-VHM GF-VHM GF-VHM
P ø D min. ø d 1 R30-lg-IKZ-HB R30-lg-IKZ-HE R30-lg-IKZ-HA
Gg/1" (tpi) inch mm ø d 2 l 1 l 2 l 3 Z TICN TICN TICN
24 1 /2 9,9 10 80 20,6 40 4 GF162316.9579 GF162616.9579 GF162916.9579
20 1 /2 9,9 10 80 20,9 40 4 GF162316.9580 GF162616.9580 GF162916.9580
20 11 /16 11,9 12 90 26 45 4 GF162326.9580 GF162626.9580 GF162926.9580
20 7 /8 15,9 16 100 32,3 48 5 GF162336.9580 GF162636.9580 GF162936.9580
20 1" 19,9 20 115 41,2 50 5 GF162356.9580 GF162656.9580 GF162956.9580
18 1 /2 9,9 10 80 20,4 40 4 GF162316.9581 GF162616.9581 GF162916.9581
16 1 /2 9,9 10 80 21,3 40 4 GF162316.9582 GF162616.9582 GF162916.9582
16 11 /16 11,9 12 90 26,1 45 4 GF162326.9582 GF162626.9582 GF162926.9582
16 7 /8 15,9 16 100 32,4 48 5 GF162336.9582 GF162636.9582 GF162936.9582
16 1" 19,9 20 115 40,4 50 5 GF162356.9582 GF162656.9582 GF162956.9582
14 7 /8 15,9 16 100 33,4 48 5 GF162336.9583 GF162636.9583 GF162936.9583
12 11 /16 11,9 12 90 26,3 45 4 GF162326.9585 GF162626.9585 GF162926.9585
12 7 /8 15,9 16 100 32,7 48 5 GF162336.9585 GF162636.9585 GF162936.9585
12 1" 19,9 20 115 41,1 50 5 GF162356.9585 GF162656.9585 GF162956.9585
10 11 /16 11,9 12 90 26,5 45 4 GF162326.9587 GF162626.9587 GF162926.9587
9 11 /16 11,9 12 90 26,6 45 4 GF162326.9588 GF162626.9588 GF162926.9588
8 7 /8 15,9 16 100 33,1 48 5 GF162336.9589 GF162636.9589 GF162936.9589
8 1" 19,9 20 115 42,7 50 5 GF162356.9589 GF162656.9589 GF162956.9589
6 1" 19,9 20 115 44,3 50 5 GF162356.9591 GF162656.9591 GF162956.9591

Andere Steigungen auf Anfrage
Tools for different thread pitch upon request

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 391
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
