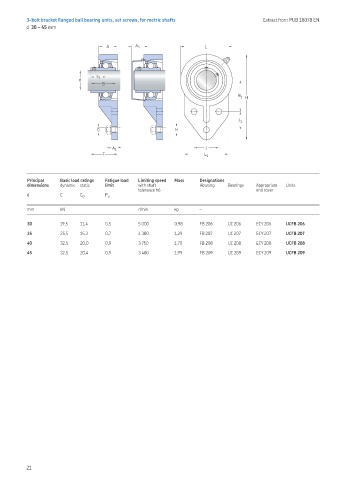

3-bolt bracket langed ball bearing units, set screws, for metric shafts Extract from PUB 18078 EN
d 30 – 45 mm

A A 5 L

s 1
d
B
H 1 H

J 1
G N

J
A 1
T L 1

Principal Basic load ratings Fatigue load Limiting speed Mass Designations
dimensions dynamic static limit with shaft Housing Bearings Appropriate Units
tolerance h6 end cover
d C C 0 P u

mm kN r/min kg –

30 19,5 11,4 0,5 5 000 0,98 FB 206 UC 206 ECY 206 UCFB 206
35 25,5 15,3 0,7 4 300 1,29 FB 207 UC 207 ECY 207 UCFB 207
40 32,5 20,0 0,9 3 750 1,70 FB 208 UC 208 ECY 208 UCFB 208
45 32,5 20,4 0,9 3 400 1,99 FB 209 UC 209 ECY 209 UCFB 209
