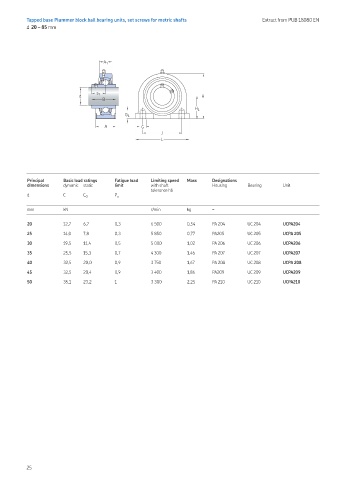

Tapped base Plummer block ball bearing units, set screws for metric shafts Extract from PUB 18080 EN
20 – 85 mm
A 1
s 1
d H
B
H 1
G 1
A G
J
L
Principal Basic load ratings Fatigue load Limiting speed Mass Designations
dimensions dynamic static limit with shaft Housing Bearing Unit
tolerance h6
d C C 0 P u
mm kN r/min kg –
20 12,7 6,7 0,3 6 500 0,54 PA 204 UC 204 UCPA204
25 14,0 7,8 0,3 5 850 0,77 PA205 UC 205 UCPA 205
30 19,5 11,4 0,5 5 000 1,02 PA 206 UC 206 UCPA206
35 25,5 15,3 0,7 4 300 1,46 PA 207 UC 207 UCPA207
40 32,5 20,0 0,9 3 750 1,67 PA 208 UC 208 UCPA 208
45 32,5 20,4 0,9 3 400 1,86 PA209 UC 209 UCPA209
50 35,1 23,2 1 3 300 2,25 PA 210 UC 210 UCPA210
