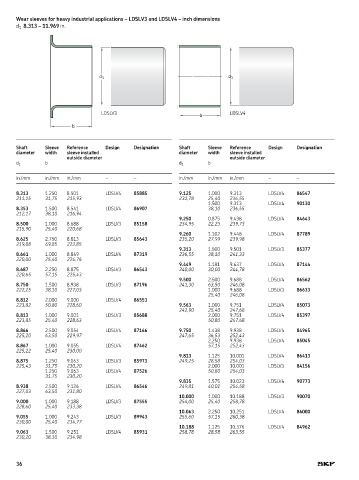

Wear sleeves for heavy industrial applications – LDSLV3 and LDSLV4 – inch dimensions
d 1 8.313 – 11.969 in.

d 1 d 1

LDSLV3 b LDSLV4
b

Shaft Sleeve Reference Design Designation Shaft Sleeve Reference Design Designation
diameter width sleeve installed diameter width sleeve installed
outside diameter outside diameter
d 1 b d 1 b
in./mm in./mm in./mm – – in./mm in./mm in./mm – –

8.313 1.250 8.501 LDSLV4 85885 9.125 1.000 9.313 LDSLV4 86547
211,15 31,75 215,93 231,78 25,40 236,55
1.500 9.313 LDSLV4 90130
8.353 1.500 8.541 LDSLV4 86907 38,10 236,55
212,17 38,10 216,94
9.250 0.875 9.438 LDSLV4 84643
8.500 1.000 8.688 LDSLV3 85158 234,95 22,23 239,73
215,90 25,40 220,68
9.260 1.102 9.448 LDSLV4 87789
8.625 2.750 8.813 LDSLV3 85643 235,20 27,99 239,98
219,08 69,85 223,85
9.313 1.500 9.501 LDSLV3 85377
8.661 1.000 8.849 LDSLV4 87319 236,55 38,10 241,33
220,00 25,40 224,76
9.449 1.181 9.637 LDSLV4 87144
8.687 2.250 8.875 LDSLV3 86543 240,00 30,00 244,78
220,65 57,15 225,43
9.500 2.500 9.688 LDSLV4 86562
8.750 1.500 8.938 LDSLV3 87196 241,30 63,50 246,08
222,25 38,10 227,03 1.000 9.688 LDSLV3 86633
25,40 246,08
8.812 2.000 9.000 LDSLV4 86551
223,82 50,80 228,60 9.563 1.000 9.751 LDSLV4 85073
242,90 25,40 247,68
8.813 1.000 9.001 LDSLV3 85688 2.000 9.751 LDSLV4 85397
223,85 25,40 228,63 50,80 247,68
8.866 2.500 9.054 LDSLV4 87166 9.750 1.438 9.938 LDSLV4 84965
225,20 63,50 229,97 247,65 36,53 252,43
2.250 9.938 LDSLV4 85045
8.867 1.000 9.055 LDSLV4 87462 57,15 252,43
225,22 25,40 230,00
9.813 1.125 10.001 LDSLV4 86413
8.875 1.250 9.063 LDSLV3 85973 249,25 28,58 254,03
225,43 31,75 230,20 2.000 10.001 LDSLV3 84156
1.250 9.063 LDSLV4 87526 50,80 254,03
31,75 230,20
9.835 1.575 10.023 LDSLV4 90773
8.938 2.500 9.126 LDSLV4 86546 249,81 40,01 254,58
227,03 63,50 231,80
10.000 1.000 10.188 LDSLV3 90070
9.000 1.000 9.188 LDSLV3 87555 254,00 25,40 258,78
228,60 25,40 233,38
10.063 2.250 10.251 LDSLV4 86000
9.055 1.000 9.243 LDSLV3 89943 255,60 57,15 260,38
230,00 25,40 234,77
10.188 1.125 10.376 LDSLV4 84962
9.063 1.500 9.251 LDSLV4 85931 258,78 28,58 263,55
230,20 38,10 234,98

36
