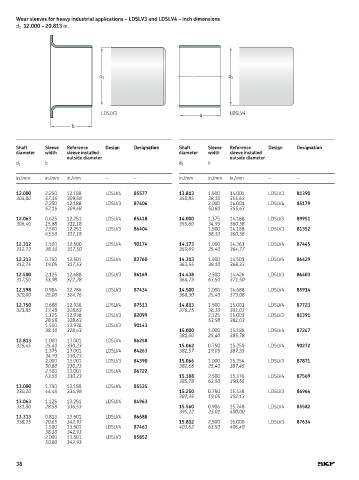

Wear sleeves for heavy industrial applications – LDSLV3 and LDSLV4 – inch dimensions
d 1 12.000 – 20.813 in.
d 1 d 1
LDSLV3 b LDSLV4
b
Shaft Sleeve Reference Design Designation Shaft Sleeve Reference Design Designation
diameter width sleeve installed diameter width sleeve installed
outside diameter outside diameter
d 1 b d 1 b
in./mm in./mm in./mm – – in./mm in./mm in./mm – –
12.000 2.250 12.188 LDSLV4 85577 13.813 1.500 14.001 LDSLV3 81390
304,80 57,15 309,58 350,85 38,10 355,63
2.250 12.188 LDSLV3 87406 2.000 14.001 LDSLV4 85179
57,15 309,58 50,80 355,63
12.063 0.625 12.251 LDSLV4 85418 14.000 1.375 14.188 LDSLV3 89951
306,40 15,88 311,18 355,60 34,93 360,38
2.500 12.251 LDSLV3 86404 1.500 14.188 LDSLV3 81352
63,50 311,18 38,10 360,38
12.312 1.500 12.500 LDSLV4 90174 14.173 1.000 14.361 LDSLV4 87445
312,72 38,10 317,50 359,99 25,40 364,77
12.313 0.750 12.501 LDSLV4 83760 14.313 1.500 14.501 LDSLV4 86429
312,75 19,05 317,53 363,55 38,10 368,33
12.500 2.125 12.688 LDSLV3 86169 14.438 2.500 14.626 LDSLV3 86403
317,50 53,98 322,28 366,73 63,50 371,50
12.598 0.984 12.786 LDSLV3 87434 14.500 1.000 14.688 LDSLV4 85914
320,00 25,00 324,76 368,30 25,40 373,08
12.750 0.688 12.938 LDSLV4 87513 14.813 1.500 15.001 LDSLV4 87723
323,85 17,48 328,63 376,25 38,10 381,03
1.125 12.938 LDSLV3 82099 2.125 15.001 LDSLV3 81391
28,58 328,63 53,98 381,03
1.500 12.938 LDSLV3 90143
38,10 328,63 15.000 1.000 15.188 LDSLV4 87247
381,00 25,40 385,78
12.813 1.000 13.001 LDSLV4 86258
325,45 25,40 330,23 15.062 0.750 15.250 LDSLV4 90272
1.375 13.001 LDSLV4 84263 382,57 19,05 387,35
34,93 330,23
2.000 13.001 LDSLV3 84390 15.066 1.000 15.254 LDSLV3 87871
50,80 330,23 382,68 25,40 387,45
2.500 13.001 LDSLV4 86722
63,50 330,23 15.188 2.500 15.376 LDSLV4 87569
385,78 63,50 390,55
13.000 1.750 13.188 LDSLV4 85535
330,20 44,45 334,98 15.250 0.750 15.438 LDSLV3 84964
387,35 19,05 392,13
13.063 1.125 13.251 LDSLV4 84963
331,80 28,58 336,53 15.560 0.906 15.748 LDSLV4 85582
395,22 23,01 400,00
13.313 0.813 13.501 LDSLV4 86688
338,15 20,65 342,93 15.812 2.500 16.000 LDSLV3 87634
1.500 13.501 LDSLV4 87463 401,62 63,50 406,40
38,10 342,93
2.000 13.501 LDSLV3 85852
50,80 342,93
38
