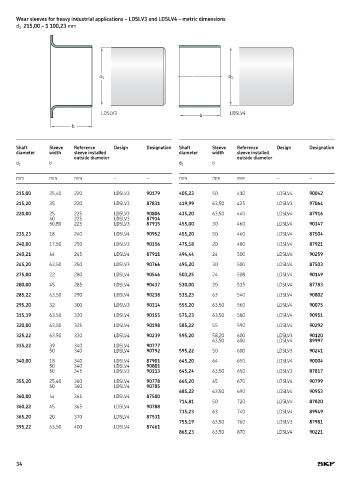

Wear sleeves for heavy industrial applications – LDSLV3 and LDSLV4 – metric dimensions
d 1 215,00 – 1 100,23 mm

d 1 d 1

LDSLV3 b LDSLV4
b

Shaft Sleeve Reference Design Designation Shaft Sleeve Reference Design Designation
diameter width sleeve installed diameter width sleeve installed
outside diameter outside diameter
d 1 b d 1 b
mm mm mm – – mm mm mm – –

215,00 25,40 220 LDSLV3 90179 405,23 50 410 LDSLV4 90042
215,20 35 220 LDSLV3 87831 419,99 63,50 425 LDSLV3 97064

220,00 25 225 LDSLV3 90806 435,20 63,50 440 LDSLV4 87916
40 225 LDSLV3 87914
50,80 225 LDSLV3 87915 455,00 30 460 LDSLV4 90347
235,23 18 240 LDSLV4 90952 455,20 50 460 LDSLV4 87504
240,00 17,50 250 LDSLV3 90156 475,18 20 480 LDSLV4 87921
240,21 44 245 LDSLV4 87911 494,44 24 500 LDSLV4 90259
245,20 63,50 250 LDSLV3 90766 495,20 30 500 LDSLV4 87503
275,00 22 280 LDSLV4 90546 503,25 24 508 LDSLV4 90149
280,00 45 285 LDSLV4 90437 530,00 20 535 LDSLV4 87783
285,22 63,50 290 LDSLV4 90238 535,23 63 540 LDSLV4 90802
295,20 32 300 LDSLV3 90114 555,20 63,50 560 LDSLV4 90075
315,19 63,50 320 LDSLV4 90155 575,23 63,50 580 LDSLV4 90951

320,00 63,50 325 LDSLV4 90198 585,22 55 590 LDSLV4 90292
325,22 63,50 330 LDSLV4 90239 595,20 58,20 600 LDSLV3 90120
63,50 600 LDSLV4 89997
335,22 39 340 LDSLV4 90777
50 340 LDSLV4 90792 595,22 50 600 LDSLV3 90241
340,00 18 340 LDSLV4 87901 645,20 64 650 LDSLV4 90004
50 340 LDSLV4 90801
50 345 LDSLV3 90113 645,24 63,50 650 LDSLV3 87817
355,20 25,40 360 LDSLV4 90778 665,20 45 670 LDSLV4 90799
50 360 LDSLV4 90785
685,22 63,50 690 LDSLV4 90953
360,00 44 365 LDSLV4 87500
714,81 50 720 LDSLV4 87820
360,22 45 365 LDSLV4 90788
735,23 63 740 LDSLV4 89949
365,20 20 370 LDSLV4 87531
755,19 63,50 760 LDSLV3 87981
395,22 63,50 400 LDSLV4 87461
865,23 63,50 870 LDSLV4 90221
