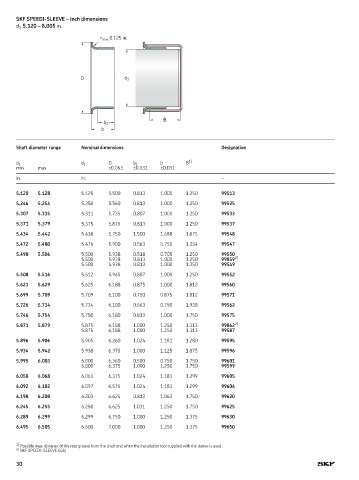

Page 30 - SKF-SPEEDI-SLEEVE

SKF SPEEDI-SLEEVE – inch dimensions
d 1 5.120 – 8.005 in.
r max 0.125 in.

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±0.063 ±0.031 ±0.031
in. in. –

5.120 5.128 5.125 5.500 0.813 1.000 1.250 99513

5.246 5.254 5.250 5.560 0.813 1.000 1.250 99525

5.307 5.315 5.311 5.735 0.807 1.000 1.250 99533

5.371 5.379 5.375 5.875 0.813 1.000 1.250 99537

5.434 5.442 5.438 5.750 1.500 1.688 1.875 99548

5.472 5.480 5.476 5.900 0.563 0.750 1.234 99547

5.498 5.506 5.500 5.938 0.518 0.705 1.250 99550
5.500 5.938 0.813 1.000 1.250 99859 2)
5.500 5.938 0.813 1.000 1.250 99549

5.508 5.516 5.512 5.945 0.807 1.000 1.250 99552

5.621 5.629 5.625 6.188 0.875 1.000 1.812 99560

5.699 5.709 5.709 6.100 0.750 0.875 1.812 99571

5.726 5.734 5.734 6.100 0.563 0.750 1.938 99562

5.746 5.754 5.750 6.180 0.813 1.000 1.750 99575

5.871 5.879 5.875 6.188 1.000 1.250 1.313 99862 2)
5.875 6.188 1.000 1.250 1.313 99587

5.896 5.906 5.905 6.260 1.024 1.181 1.280 99595

5.934 5.942 5.938 6.375 1.000 1.125 1.875 99596

5.995 6.003 6.000 6.360 0.500 0.750 1.750 99601
6.000 6.375 1.000 1.250 1.750 99599

6.058 6.068 6.063 6.375 1.024 1.181 1.299 99605

6.092 6.102 6.097 6.575 1.024 1.181 1.299 99606

6.198 6.208 6.203 6.625 0.813 1.063 1.750 99620

6.245 6.255 6.250 6.625 1.031 1.250 1.750 99625

6.289 6.299 6.299 6.750 1.000 1.250 1.375 99630

6.495 6.505 6.500 7.000 1.000 1.250 1.375 99650

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
