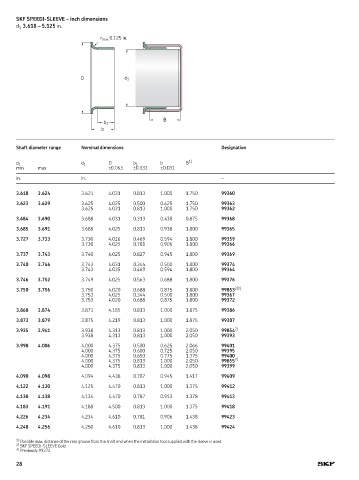

Page 28 - SKF-SPEEDI-SLEEVE

SKF SPEEDI-SLEEVE – inch dimensions
d 1 3.618 – 5.125 in.
r max 0.125 in.

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±0.063 ±0.031 ±0.031
in. in. –

3.618 3.624 3.621 4.031 0.813 1.000 1.750 99360

3.623 3.629 3.625 4.025 0.500 0.625 1.750 99363
3.625 4.031 0.813 1.000 1.750 99362

3.684 3.690 3.688 4.031 0.313 0.438 0.875 99368

3.685 3.691 3.688 4.025 0.813 0.938 1.800 99365

3.727 3.733 3.730 4.016 0.469 0.594 1.800 99359
3.730 4.025 0.781 0.906 1.800 99366

3.737 3.743 3.740 4.025 0.827 0.945 1.800 99369

3.740 3.746 3.743 4.031 0.344 0.500 1.800 99374
3.743 4.035 0.469 0.594 1.800 99364

3.746 3.752 3.749 4.025 0.563 0.688 1.800 99376

3.750 3.756 3.750 4.020 0.688 0.875 1.800 99853 2)3)
3.753 4.025 0.344 0.500 1.800 99367
3.753 4.020 0.688 0.875 1.800 99372

3.868 3.874 3.871 4.185 0.813 1.000 1.875 99386

3.873 3.879 3.875 4.219 0.813 1.000 1.875 99387

3.935 3.941 3.938 4.313 0.813 1.000 2.050 99854 2)
3.938 4.313 0.813 1.000 2.050 99393

3.998 4.006 4.000 4.375 0.500 0.625 2.066 99401
4.000 4.375 0.600 0.725 2.050 99395
4.000 4.375 0.650 0.775 1.375 99400
4.000 4.375 0.813 1.000 2.050 99855 2)
4.000 4.375 0.813 1.000 2.050 99399

4.090 4.098 4.094 4.438 0.787 0.945 1.417 99409

4.122 4.130 4.125 4.470 0.813 1.000 1.375 99412

4.130 4.138 4.134 4.470 0.787 0.913 1.378 99413

4.183 4.191 4.188 4.500 0.813 1.000 1.375 99418

4.226 4.234 4.234 4.610 0.781 0.906 1.438 99423

4.248 4.256 4.250 4.610 0.813 1.000 1.438 99424

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
3) Previously 99372
