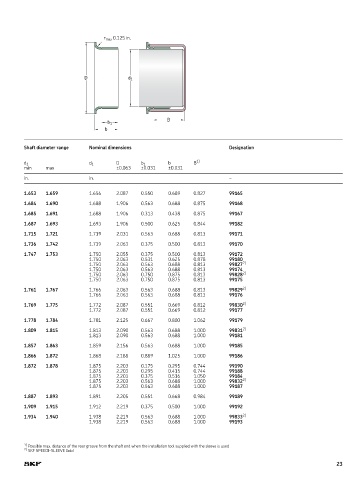

Page 23 - SKF-SPEEDI-SLEEVE

r max 0.125 in.

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±0.063 ±0.031 ±0.031
in. in. –

1.653 1.659 1.656 2.087 0.550 0.689 0.827 99165

1.684 1.690 1.688 1.906 0.563 0.688 0.875 99168

1.685 1.691 1.688 1.906 0.313 0.438 0.875 99167

1.687 1.693 1.693 1.906 0.500 0.625 0.844 99182

1.715 1.721 1.719 2.031 0.563 0.688 0.813 99171

1.736 1.742 1.739 2.063 0.375 0.500 0.813 99170

1.747 1.753 1.750 2.055 0.375 0.500 0.813 99172
1.750 2.063 0.531 0.625 0.878 99180
1.750 2.063 0.563 0.688 0.813 99827 2)
1.750 2.063 0.563 0.688 0.813 99174
1.750 2.063 0.750 0.875 0.813 99828 2)
1.750 2.063 0.750 0.875 0.813 99175

1.761 1.767 1.766 2.063 0.563 0.688 0.813 99829 2)
1.766 2.063 0.563 0.688 0.813 99176

1.769 1.775 1.772 2.087 0.551 0.669 0.812 99830 2)
1.772 2.087 0.551 0.669 0.812 99177

1.778 1.784 1.781 2.125 0.667 0.800 1.062 99179

1.809 1.815 1.813 2.090 0.563 0.688 1.000 99831 2)
1.813 2.090 0.563 0.688 1.000 99181

1.857 1.863 1.859 2.156 0.563 0.688 1.000 99185

1.866 1.872 1.868 2.188 0.889 1.025 1.000 99186

1.872 1.878 1.875 2.203 0.175 0.295 0.744 99190
1.875 2.203 0.295 0.415 0.744 99188
1.875 2.203 0.375 0.516 1.050 99184
1.875 2.203 0.563 0.688 1.000 99832 2)
1.875 2.203 0.563 0.688 1.000 99187

1.887 1.893 1.891 2.205 0.551 0.668 0.984 99189

1.909 1.915 1.912 2.219 0.375 0.500 1.000 99192

1.934 1.940 1.938 2.219 0.563 0.688 1.000 99833 2)
1.938 2.219 0.563 0.688 1.000 99193

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
