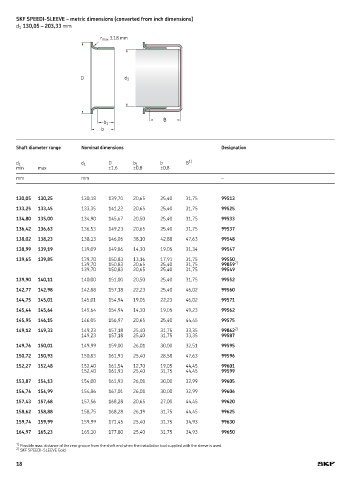

SKF SPEEDI-SLEEVE – metric dimensions (converted from inch dimensions)
d 1 130,05 – 203,33 mm
r max 3,18 mm
D d 1
B
b 1
b
Shaft diameter range Nominal dimensions Designation
1)
d 1 d 1 D b 1 b B
min max ±1,6 ±0,8 ±0,8
mm mm –
130,05 130,25 130,18 139,70 20,65 25,40 31,75 99513
133,25 133,45 133,35 141,22 20,65 25,40 31,75 99525
134,80 135,00 134,90 145,67 20,50 25,40 31,75 99533
136,42 136,63 136,53 149,23 20,65 25,40 31,75 99537
138,02 138,23 138,13 146,05 38,10 42,88 47,63 99548
138,99 139,19 139,09 149,86 14,30 19,05 31,34 99547
139,65 139,85 139,70 150,83 13,16 17,91 31,75 99550
139,70 150,83 20,65 25,40 31,75 99859 2)
139,70 150,83 20,65 25,40 31,75 99549
139,90 140,11 140,00 151,00 20,50 25,40 31,75 99552
142,77 142,98 142,88 157,18 22,23 25,40 46,02 99560
144,75 145,01 145,01 154,94 19,05 22,23 46,02 99571
145,44 145,64 145,64 154,94 14,30 19,05 49,23 99562
145,95 146,15 146,05 156,97 20,65 25,40 44,45 99575
149,12 149,33 149,23 157,18 25,40 31,75 33,35 99862 2)
149,23 157,18 25,40 31,75 33,35 99587
149,76 150,01 149,99 159,00 26,01 30,00 32,51 99595
150,72 150,93 150,83 161,93 25,40 28,58 47,63 99596
152,27 152,48 152,40 161,54 12,70 19,05 44,45 99601
152,40 161,93 25,40 31,75 44,45 99599
153,87 154,13 154,00 161,93 26,01 30,00 32,99 99605
154,74 154,99 154,86 167,01 26,01 30,00 32,99 99606
157,43 157,68 157,56 168,28 20,65 27,00 44,45 99620
158,62 158,88 158,75 168,28 26,19 31,75 44,45 99625
159,74 159,99 159,99 171,45 25,40 31,75 34,93 99630
164,97 165,23 165,10 177,80 25,40 31,75 34,93 99650
1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
