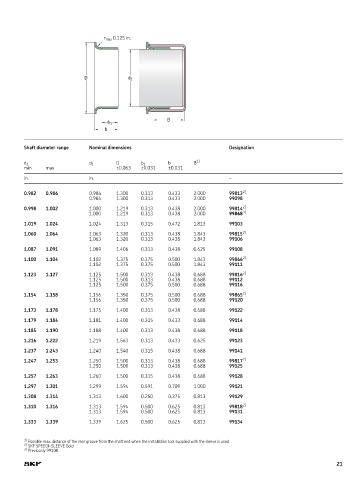

Page 21 - SKF-SPEEDI-SLEEVE

r max 0.125 in.

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±0.063 ±0.031 ±0.031
in. in. –

0.982 0.986 0.984 1.300 0.313 0.433 2.000 99813 2)
0.984 1.300 0.313 0.433 2.000 99098

0.998 1.002 1.000 1.219 0.313 0.438 2.000 99814 2)
1.000 1.219 0.313 0.438 2.000 99868 3)

1.019 1.024 1.024 1.313 0.315 0.472 1.813 99103

1.060 1.064 1.063 1.320 0.313 0.438 1.843 99815 2)
1.063 1.320 0.313 0.438 1.843 99106

1.087 1.091 1.089 1.406 0.313 0.438 0.625 99108

1.100 1.104 1.102 1.375 0.375 0.500 1.843 99866 2)
1.102 1.375 0.375 0.500 1.843 99111

1.123 1.127 1.125 1.500 0.313 0.438 0.688 99816 2)
1.125 1.500 0.313 0.438 0.688 99112
1.125 1.500 0.375 0.500 0.688 99116

1.154 1.158 1.156 1.350 0.375 0.500 0.688 99865 2)
1.156 1.350 0.375 0.500 0.688 99120

1.173 1.178 1.175 1.400 0.313 0.438 0.688 99122

1.179 1.184 1.181 1.400 0.315 0.433 0.688 99114

1.185 1.190 1.188 1.400 0.313 0.438 0.688 99118

1.216 1.222 1.219 1.563 0.313 0.433 0.625 99123

1.237 1.243 1.240 1.540 0.315 0.438 0.688 99141

1.247 1.253 1.250 1.500 0.313 0.438 0.688 99817 2)
1.250 1.500 0.313 0.438 0.688 99125

1.257 1.263 1.260 1.500 0.315 0.438 0.688 99128

1.297 1.301 1.299 1.594 0.591 0.709 1.000 99121

1.308 1.314 1.313 1.600 0.250 0.375 0.813 99129

1.310 1.316 1.313 1.594 0.500 0.625 0.813 99818 2)
1.313 1.594 0.500 0.625 0.813 99131

1.333 1.339 1.339 1.625 0.500 0.625 0.813 99134

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
3) Previously 99100
21
