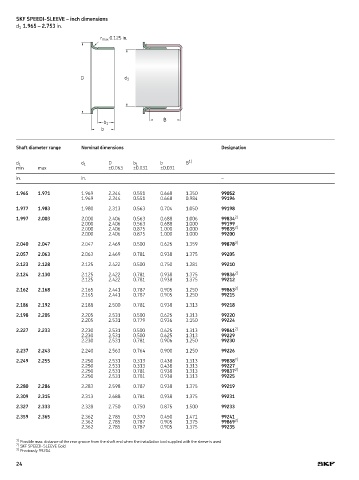

Page 24 - SKF-SPEEDI-SLEEVE

SKF SPEEDI-SLEEVE – inch dimensions
d 1 1.965 – 2.753 in.
r max 0.125 in.

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±0.063 ±0.031 ±0.031
in. in. –

1.965 1.971 1.969 2.244 0.551 0.668 1.350 99052
1.969 2.244 0.551 0.668 0.984 99196

1.977 1.983 1.980 2.313 0.563 0.704 1.050 99198
1.997 2.003 2.000 2.406 0.563 0.688 1.006 99834 2)
2.000 2.406 0.563 0.688 1.000 99199
2.000 2.406 0.875 1.000 1.000 99835 2)
2.000 2.406 0.875 1.000 1.000 99200

2.040 2.047 2.047 2.469 0.500 0.625 1.359 99878 3)

2.057 2.063 2.063 2.469 0.781 0.938 1.375 99205

2.123 2.128 2.125 2.422 0.500 0.750 1.281 99210

2.124 2.130 2.125 2.422 0.781 0.938 1.375 99836 2)
2.125 2.422 0.781 0.938 1.375 99212

2.162 2.168 2.165 2.441 0.787 0.905 1.250 99863 2)
2.165 2.441 0.787 0.905 1.250 99215

2.186 2.192 2.188 2.500 0.781 0.938 1.313 99218

2.198 2.205 2.205 2.531 0.500 0.625 1.313 99220
2.205 2.531 0.779 0.936 3.150 99224

2.227 2.233 2.230 2.531 0.500 0.625 1.313 99861 2)
2.230 2.531 0.500 0.625 1.313 99229
2.230 2.531 0.781 0.906 1.250 99230

2.237 2.243 2.240 2.563 0.764 0.900 1.250 99226

2.249 2.255 2.250 2.531 0.313 0.438 1.313 99838 2)
2.250 2.531 0.313 0.438 1.313 99227
2.250 2.531 0.781 0.938 1.313 99837 2)
2.250 2.531 0.781 0.938 1.313 99225

2.280 2.286 2.283 2.598 0.787 0.938 1.375 99219

2.309 2.315 2.313 2.688 0.781 0.938 1.375 99231

2.327 2.333 2.328 2.750 0.750 0.875 1.500 99233

2.359 2.365 2.362 2.785 0.370 0.450 1.471 99241
2.362 2.785 0.787 0.905 1.375 99869 2)
2.362 2.785 0.787 0.905 1.375 99235

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
3) Previously 99204
