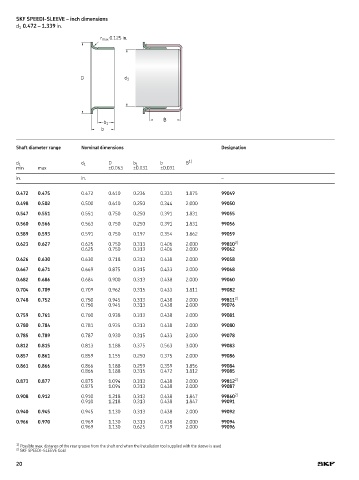

SKF SPEEDI-SLEEVE – inch dimensions
d 1 0.472 – 1.339 in.
r max 0.125 in.

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±0.063 ±0.031 ±0.031
in. in. –

0.472 0.475 0.472 0.610 0.236 0.331 1.875 99049

0.498 0.502 0.500 0.610 0.250 0.344 2.000 99050

0.547 0.551 0.551 0.750 0.250 0.391 1.831 99055

0.560 0.566 0.563 0.750 0.250 0.391 1.831 99056

0.589 0.593 0.591 0.750 0.197 0.354 1.862 99059

0.623 0.627 0.625 0.750 0.313 0.406 2.000 99810 2)
0.625 0.750 0.313 0.406 2.000 99062

0.626 0.630 0.630 0.718 0.313 0.438 2.000 99058

0.667 0.671 0.669 0.875 0.315 0.433 2.000 99068

0.682 0.686 0.684 0.900 0.313 0.438 2.000 99060

0.704 0.709 0.709 0.962 0.315 0.433 1.811 99082

0.748 0.752 0.750 0.945 0.313 0.438 2.000 99811 2)
0.750 0.945 0.313 0.438 2.000 99076

0.759 0.761 0.760 0.938 0.313 0.438 2.000 99081

0.780 0.784 0.781 0.935 0.313 0.438 2.000 99080

0.785 0.789 0.787 0.930 0.315 0.433 2.000 99078

0.812 0.815 0.813 1.188 0.375 0.563 3.000 99083

0.857 0.861 0.859 1.155 0.250 0.375 2.000 99086

0.861 0.866 0.866 1.188 0.259 0.359 1.856 99084
0.866 1.188 0.315 0.472 1.812 99085

0.873 0.877 0.875 1.094 0.313 0.438 2.000 99812 2)
0.875 1.094 0.313 0.438 2.000 99087

0.908 0.912 0.910 1.218 0.313 0.438 1.847 99860 2)
0.910 1.218 0.313 0.438 1.847 99091

0.940 0.945 0.945 1.130 0.313 0.438 2.000 99092

0.966 0.970 0.969 1.130 0.313 0.438 2.000 99094
0.969 1.130 0.625 0.719 2.000 99096

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
