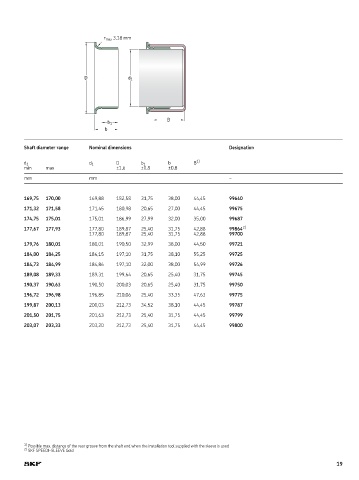

Page 19 - SKF-SPEEDI-SLEEVE

r max 3,18 mm

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±1,6 ±0,8 ±0,8
mm mm –

169,75 170,00 169,88 182,58 31,75 38,00 44,45 99640
171,32 171,58 171,45 180,98 20,65 27,00 44,45 99675
174,75 175,01 175,01 186,99 27,99 32,00 35,00 99687

177,67 177,93 177,80 189,87 25,40 31,75 42,88 99864 2)
177,80 189,87 25,40 31,75 42,88 99700

179,76 180,01 180,01 190,50 32,99 38,00 44,50 99721
184,00 184,25 184,15 197,10 31,75 38,10 55,25 99725
184,73 184,99 184,86 197,10 32,00 38,00 54,99 99726
189,08 189,33 189,31 199,64 20,65 25,40 31,75 99745

190,37 190,63 190,50 200,03 20,65 25,40 31,75 99750
196,72 196,98 196,85 210,06 25,40 33,35 47,63 99775
199,87 200,13 200,03 212,73 34,52 38,10 44,45 99787
201,50 201,75 201,63 212,73 25,40 31,75 44,45 99799

203,07 203,33 203,20 212,73 25,40 31,75 44,45 99800

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
