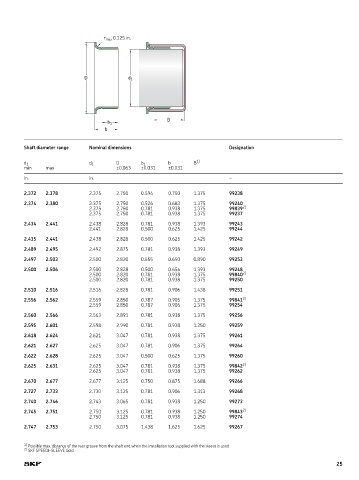

Page 25 - SKF-SPEEDI-SLEEVE

r max 0.125 in.

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±0.063 ±0.031 ±0.031
in. in. –

2.372 2.378 2.375 2.750 0.594 0.750 1.375 99238

2.374 2.380 2.375 2.750 0.526 0.683 1.375 99240
2.375 2.750 0.781 0.938 1.375 99839 2)
2.375 2.750 0.781 0.938 1.375 99237

2.434 2.441 2.438 2.828 0.781 0.938 1.393 99243
2.441 2.828 0.500 0.625 1.425 99244

2.435 2.441 2.438 2.828 0.500 0.625 1.425 99242

2.489 2.495 2.492 2.875 0.781 0.938 1.393 99249

2.497 2.503 2.500 2.820 0.555 0.650 0.890 99253

2.500 2.506 2.500 2.828 0.500 0.656 1.393 99248
2.500 2.820 0.781 0.938 1.375 99840 2)
2.500 2.820 0.781 0.938 1.375 99250

2.510 2.516 2.516 2.828 0.781 0.906 1.438 99251

2.556 2.562 2.559 2.850 0.787 0.905 1.375 99841 2)
2.559 2.850 0.787 0.905 1.375 99254

2.560 2.566 2.563 2.891 0.781 0.938 1.375 99256

2.595 2.601 2.598 2.990 0.781 0.938 1.250 99259

2.618 2.624 2.621 3.047 0.781 0.938 1.375 99261

2.621 2.627 2.625 3.047 0.781 0.906 1.375 99264

2.622 2.628 2.625 3.047 0.500 0.625 1.375 99260

2.625 2.631 2.625 3.047 0.781 0.938 1.375 99842 2)
2.625 3.047 0.781 0.938 1.375 99262

2.670 2.677 2.677 3.125 0.750 0.875 1.688 99266

2.727 2.733 2.730 3.125 0.781 0.906 1.313 99268

2.740 2.746 2.743 3.065 0.781 0.938 1.250 99273

2.745 2.751 2.750 3.125 0.781 0.938 1.250 99843 2)
2.750 3.125 0.781 0.938 1.250 99274

2.747 2.753 2.750 3.075 1.438 1.625 1.625 99267

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
