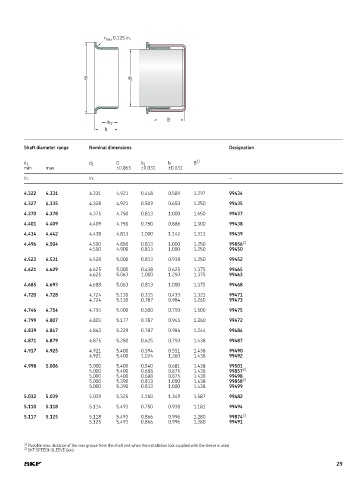

Page 29 - SKF-SPEEDI-SLEEVE

r max 0.125 in.

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±0.063 ±0.031 ±0.031
in. in. –

4.322 4.331 4.331 4.921 0.448 0.589 1.297 99434

4.327 4.335 4.328 4.921 0.509 0.650 1.250 99435

4.370 4.378 4.375 4.750 0.813 1.000 1.650 99437

4.401 4.409 4.409 4.750 0.750 0.886 1.300 99438

4.434 4.442 4.438 4.813 1.000 1.142 1.313 99439

4.496 4.504 4.500 4.850 0.813 1.000 1.250 99856 2)
4.500 4.900 0.813 1.000 1.250 99450

4.523 4.531 4.528 5.000 0.813 0.938 1.250 99452

4.621 4.629 4.625 5.000 0.438 0.625 1.375 99465
4.625 5.063 1.000 1.250 1.375 99463

4.685 4.693 4.688 5.063 0.813 1.000 1.375 99468

4.720 4.728 4.724 5.110 0.315 0.433 1.323 99471
4.724 5.110 0.787 0.984 1.260 99473

4.746 4.754 4.750 5.000 0.500 0.750 1.500 99475

4.799 4.807 4.803 5.177 0.787 0.945 1.260 99472

4.839 4.847 4.843 5.229 0.787 0.984 1.244 99484

4.871 4.879 4.875 5.250 0.625 0.750 1.438 99487

4.917 4.925 4.921 5.400 0.394 0.551 1.438 99490
4.921 5.400 1.024 1.260 1.438 99492

4.998 5.006 5.000 5.400 0.540 0.681 1.438 99501
5.000 5.400 0.688 0.875 1.438 99857 2)
5.000 5.400 0.688 0.875 1.438 99498
5.000 5.390 0.813 1.000 1.438 99858 2)
5.000 5.390 0.813 1.000 1.438 99499

5.032 5.039 5.039 5.325 1.150 1.349 1.587 99482
5.110 5.118 5.114 5.493 0.750 0.938 1.181 99494

5.117 5.125 5.118 5.493 0.866 0.996 1.280 99874 2)
5.125 5.493 0.866 0.996 1.280 99491

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold

29
