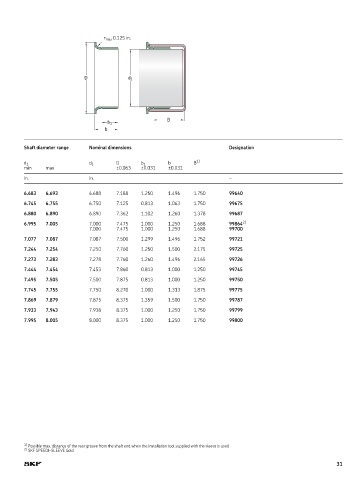

Page 31 - SKF-SPEEDI-SLEEVE

r max 0.125 in.

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±0.063 ±0.031 ±0.031
in. in. –

6.683 6.693 6.688 7.188 1.250 1.496 1.750 99640

6.745 6.755 6.750 7.125 0.813 1.063 1.750 99675

6.880 6.890 6.890 7.362 1.102 1.260 1.378 99687

6.995 7.005 7.000 7.475 1.000 1.250 1.688 99864 2)
7.000 7.475 1.000 1.250 1.688 99700

7.077 7.087 7.087 7.500 1.299 1.496 1.752 99721

7.244 7.254 7.250 7.760 1.250 1.500 2.175 99725

7.273 7.283 7.278 7.760 1.260 1.496 2.165 99726

7.444 7.454 7.453 7.860 0.813 1.000 1.250 99745

7.495 7.505 7.500 7.875 0.813 1.000 1.250 99750

7.745 7.755 7.750 8.270 1.000 1.313 1.875 99775

7.869 7.879 7.875 8.375 1.359 1.500 1.750 99787

7.933 7.943 7.938 8.375 1.000 1.250 1.750 99799

7.995 8.005 8.000 8.375 1.000 1.250 1.750 99800

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
