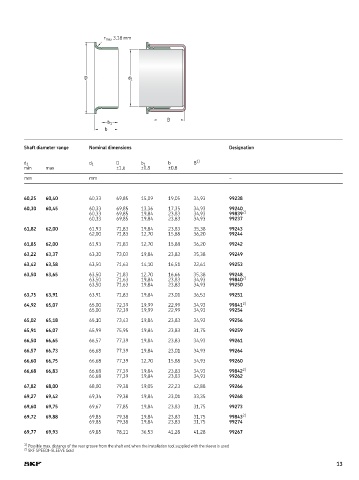

Page 13 - SKF-SPEEDI-SLEEVE

r max 3,18 mm

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±1,6 ±0,8 ±0,8
mm mm –

60,25 60,40 60,33 69,85 15,09 19,05 34,93 99238
60,30 60,45 60,33 69,85 13,36 17,35 34,93 99240
60,33 69,85 19,84 23,83 34,93 99839 2)
60,33 69,85 19,84 23,83 34,93 99237
61,82 62,00 61,93 71,83 19,84 23,83 35,38 99243
62,00 71,83 12,70 15,88 36,20 99244
61,85 62,00 61,93 71,83 12,70 15,88 36,20 99242
63,22 63,37 63,30 73,03 19,84 23,83 35,38 99249
63,42 63,58 63,50 71,63 14,10 16,51 22,61 99253
63,50 63,65 63,50 71,83 12,70 16,66 35,38 99248
63,50 71,63 19,84 23,83 34,93 99840 2)
63,50 71,63 19,84 23,83 34,93 99250
63,75 63,91 63,91 71,83 19,84 23,01 36,53 99251
64,92 65,07 65,00 72,39 19,99 22,99 34,93 99841 2)
65,00 72,39 19,99 22,99 34,93 99254

65,02 65,18 65,10 73,43 19,84 23,83 34,93 99256
65,91 66,07 65,99 75,95 19,84 23,83 31,75 99259
66,50 66,65 66,57 77,39 19,84 23,83 34,93 99261
66,57 66,73 66,68 77,39 19,84 23,01 34,93 99264

66,60 66,75 66,68 77,39 12,70 15,88 34,93 99260
66,68 66,83 66,68 77,39 19,84 23,83 34,93 99842 2)
66,68 77,39 19,84 23,83 34,93 99262
67,82 68,00 68,00 79,38 19,05 22,23 42,88 99266
69,27 69,42 69,34 79,38 19,84 23,01 33,35 99268
69,60 69,75 69,67 77,85 19,84 23,83 31,75 99273

69,72 69,88 69,85 79,38 19,84 23,83 31,75 99843 2)
69,85 79,38 19,84 23,83 31,75 99274
69,77 69,93 69,85 78,11 36,53 41,28 41,28 99267

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
13
