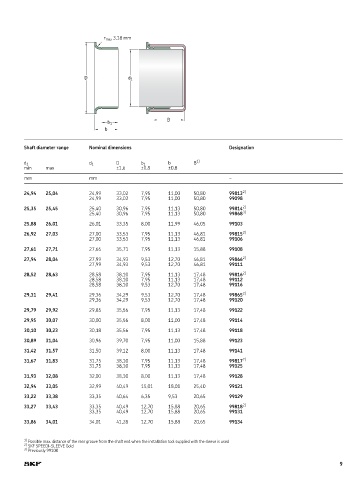

Page 9 - SKF-SPEEDI-SLEEVE

r max 3,18 mm

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±1,6 ±0,8 ±0,8
mm mm –

24,94 25,04 24,99 33,02 7,95 11,00 50,80 99813 2)
24,99 33,02 7,95 11,00 50,80 99098
25,35 25,45 25,40 30,96 7,95 11,13 50,80 99814 2)
25,40 30,96 7,95 11,13 50,80 99868 3)
25,88 26,01 26,01 33,35 8,00 11,99 46,05 99103
26,92 27,03 27,00 33,53 7,95 11,13 46,81 99815 2)
27,00 33,53 7,95 11,13 46,81 99106
27,61 27,71 27,66 35,71 7,95 11,13 15,88 99108
27,94 28,04 27,99 34,93 9,53 12,70 46,81 99866 2)
27,99 34,93 9,53 12,70 46,81 99111
28,52 28,63 28,58 38,10 7,95 11,13 17,48 99816 2)
28,58 38,10 7,95 11,13 17,48 99112
28,58 38,10 9,53 12,70 17,48 99116
29,31 29,41 29,36 34,29 9,53 12,70 17,48 99865 2)
29,36 34,29 9,53 12,70 17,48 99120

29,79 29,92 29,85 35,56 7,95 11,13 17,48 99122
29,95 30,07 30,00 35,56 8,00 11,00 17,48 99114
30,10 30,23 30,18 35,56 7,95 11,13 17,48 99118
30,89 31,04 30,96 39,70 7,95 11,00 15,88 99123
31,42 31,57 31,50 39,12 8,00 11,13 17,48 99141
31,67 31,83 31,75 38,10 7,95 11,13 17,48 99817 2)
31,75 38,10 7,95 11,13 17,48 99125
31,93 32,08 32,00 38,10 8,00 11,13 17,48 99128
32,94 33,05 32,99 40,49 15,01 18,01 25,40 99121
33,22 33,38 33,35 40,64 6,35 9,53 20,65 99129
33,27 33,43 33,35 40,49 12,70 15,88 20,65 99818 2)
33,35 40,49 12,70 15,88 20,65 99131

33,86 34,01 34,01 41,28 12,70 15,88 20,65 99134

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
3) Previously 99100
9
