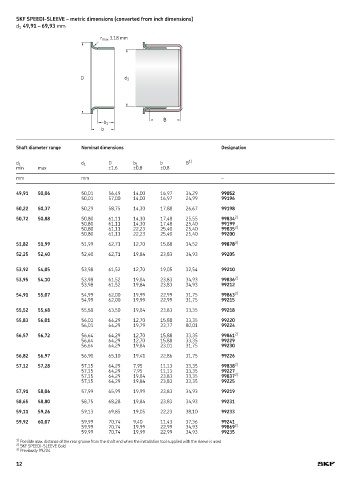

SKF SPEEDI-SLEEVE – metric dimensions (converted from inch dimensions)
d 1 49,91 – 69,93 mm
r max 3,18 mm
D d 1
B
b 1
b
Shaft diameter range Nominal dimensions Designation
1)
d 1 d 1 D b 1 b B
min max ±1,6 ±0,8 ±0,8
mm mm –
49,91 50,06 50,01 56,49 14,00 16,97 34,29 99052
50,01 57,00 14,00 16,97 24,99 99196
50,22 50,37 50,29 58,75 14,30 17,88 26,67 99198
50,72 50,88 50,80 61,11 14,30 17,48 25,55 99834 2)
50,80 61,11 14,30 17,48 25,40 99199
50,80 61,11 22,23 25,40 25,40 99835 2)
50,80 61,11 22,23 25,40 25,40 99200
51,82 51,99 51,99 62,71 12,70 15,88 34,52 99878 3)
52,25 52,40 52,40 62,71 19,84 23,83 34,93 99205
53,92 54,05 53,98 61,52 12,70 19,05 32,54 99210
53,95 54,10 53,98 61,52 19,84 23,83 34,93 99836 2)
53,98 61,52 19,84 23,83 34,93 99212
54,91 55,07 54,99 62,00 19,99 22,99 31,75 99863 2)
54,99 62,00 19,99 22,99 31,75 99215
55,52 55,68 55,58 63,50 19,84 23,83 33,35 99218
55,83 56,01 56,01 64,29 12,70 15,88 33,35 99220
56,01 64,29 19,79 23,77 80,01 99224
56,57 56,72 56,64 64,29 12,70 15,88 33,35 99861 2)
56,64 64,29 12,70 15,88 33,35 99229
56,64 64,29 19,84 23,01 31,75 99230
56,82 56,97 56,90 65,10 19,41 22,86 31,75 99226
57,12 57,28 57,15 64,29 7,95 11,13 33,35 99838 2)
57,15 64,29 7,95 11,13 33,35 99227
57,15 64,29 19,84 23,83 33,35 99837 2)
57,15 64,29 19,84 23,83 33,35 99225
57,91 58,06 57,99 65,99 19,99 23,83 34,93 99219
58,65 58,80 58,75 68,28 19,84 23,83 34,93 99231
59,11 59,26 59,13 69,85 19,05 22,23 38,10 99233
59,92 60,07 59,99 70,74 9,40 11,43 37,36 99241
59,99 70,74 19,99 22,99 34,93 99869 2)
59,99 70,74 19,99 22,99 34,93 99235
1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
3) Previously 99204
