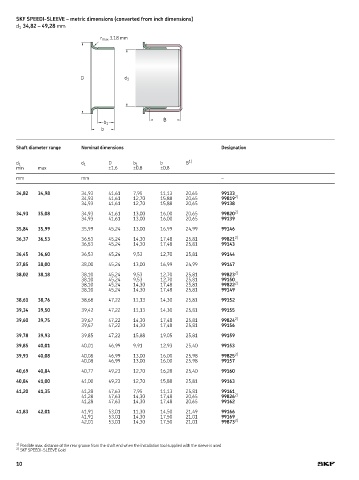

SKF SPEEDI-SLEEVE – metric dimensions (converted from inch dimensions)
d 1 34,82 – 49,28 mm
r max 3,18 mm
D d 1
B
b 1
b
Shaft diameter range Nominal dimensions Designation
1)
d 1 d 1 D b 1 b B
min max ±1,6 ±0,8 ±0,8
mm mm –
34,82 34,98 34,93 41,61 7,95 11,13 20,65 99133
34,93 41,61 12,70 15,88 20,65 99819 2)
34,93 41,61 12,70 15,88 20,65 99138
34,93 35,08 34,93 41,61 13,00 16,00 20,65 99820 2)
34,93 41,61 13,00 16,00 20,65 99139
35,84 35,99 35,99 45,24 13,00 16,99 24,99 99146
36,37 36,53 36,53 45,24 14,30 17,48 25,81 99821 2)
36,53 45,24 14,30 17,48 25,81 99143
36,45 36,60 36,53 45,24 9,53 12,70 25,81 99144
37,85 38,00 38,00 45,24 13,00 16,99 24,99 99147
38,02 38,18 38,10 45,24 9,53 12,70 25,81 99823 2)
38,10 45,24 9,53 12,70 25,81 99150
38,10 45,24 14,30 17,48 25,81 99822 2)
38,10 45,24 14,30 17,48 25,81 99149
38,61 38,76 38,68 47,22 11,13 14,30 25,81 99152
39,34 39,50 39,42 47,22 11,13 14,30 25,81 99155
39,60 39,75 39,67 47,22 14,30 17,48 25,81 99824 2)
39,67 47,22 14,30 17,48 25,81 99156
39,78 39,93 39,85 47,22 15,88 19,05 25,81 99159
39,85 40,01 40,01 46,99 9,91 12,93 25,40 99153
39,93 40,08 40,08 46,99 13,00 16,00 25,98 99825 2)
40,08 46,99 13,00 16,00 25,98 99157
40,69 40,84 40,77 49,23 12,70 16,28 25,40 99160
40,84 41,00 41,00 49,23 12,70 15,88 25,81 99163
41,20 41,35 41,28 47,63 7,95 11,13 25,81 99161
41,28 47,63 14,30 17,48 20,65 99826 2)
41,28 47,63 14,30 17,48 20,65 99162
41,83 42,01 41,91 53,01 11,30 14,50 21,49 99166
41,91 53,01 14,30 17,50 21,01 99169
42,01 53,01 14,30 17,50 21,01 99873 2)
1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
