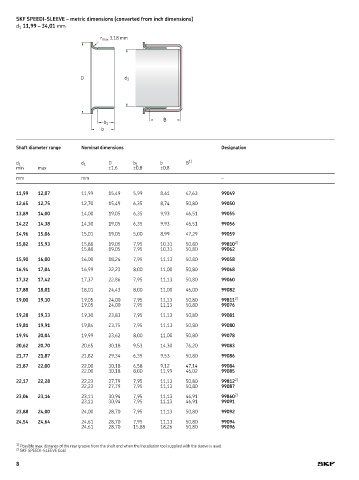

SKF SPEEDI-SLEEVE – metric dimensions (converted from inch dimensions)
d 1 11,99 – 34,01 mm
r max 3,18 mm
D d 1
B
b 1
b
Shaft diameter range Nominal dimensions Designation
1)
d 1 d 1 D b 1 b B
min max ±1,6 ±0,8 ±0,8
mm mm –
11,99 12,07 11,99 15,49 5,99 8,41 47,63 99049
12,65 12,75 12,70 15,49 6,35 8,74 50,80 99050
13,89 14,00 14,00 19,05 6,35 9,93 46,51 99055
14,22 14,38 14,30 19,05 6,35 9,93 46,51 99056
14,96 15,06 15,01 19,05 5,00 8,99 47,29 99059
15,82 15,93 15,88 19,05 7,95 10,31 50,80 99810 2)
15,88 19,05 7,95 10,31 50,80 99062
15,90 16,00 16,00 18,24 7,95 11,13 50,80 99058
16,94 17,04 16,99 22,23 8,00 11,00 50,80 99068
17,32 17,42 17,37 22,86 7,95 11,13 50,80 99060
17,88 18,01 18,01 24,43 8,00 11,00 46,00 99082
19,00 19,10 19,05 24,00 7,95 11,13 50,80 99811 2)
19,05 24,00 7,95 11,13 50,80 99076
19,28 19,33 19,30 23,83 7,95 11,13 50,80 99081
19,81 19,91 19,84 23,75 7,95 11,13 50,80 99080
19,94 20,04 19,99 23,62 8,00 11,00 50,80 99078
20,62 20,70 20,65 30,18 9,53 14,30 76,20 99083
21,77 21,87 21,82 29,34 6,35 9,53 50,80 99086
21,87 22,00 22,00 30,18 6,58 9,12 47,14 99084
22,00 30,18 8,00 11,99 46,02 99085
22,17 22,28 22,23 27,79 7,95 11,13 50,80 99812 2)
22,23 27,79 7,95 11,13 50,80 99087
23,06 23,16 23,11 30,94 7,95 11,13 46,91 99860 2)
23,11 30,94 7,95 11,13 46,91 99091
23,88 24,00 24,00 28,70 7,95 11,13 50,80 99092
24,54 24,64 24,61 28,70 7,95 11,13 50,80 99094
24,61 28,70 15,88 18,26 50,80 99096
1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
