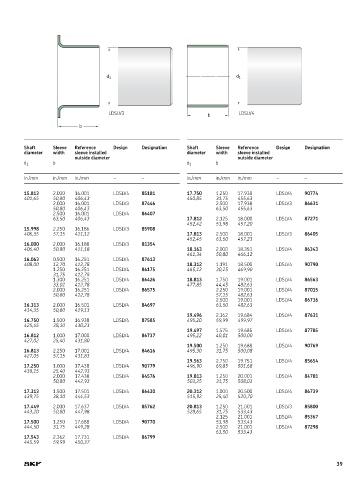

Page 39 - SKF-SPEEDI-SLEEVE

d 1 d 1

LDSLV3 b LDSLV4
b

Shaft Sleeve Reference Design Designation Shaft Sleeve Reference Design Designation
diameter width sleeve installed diameter width sleeve installed
outside diameter outside diameter
d 1 b d 1 b
in./mm in./mm in./mm – – in./mm in./mm in./mm – –

15.813 2.000 16.001 LDSLV4 85181 17.750 1.250 17.938 LDSLV4 90774
401,65 50,80 406,43 450,85 31,75 455,63
2.000 16.001 LDSLV3 87446 2.500 17.938 LDSLV3 86631
50,80 406,43 63,50 455,63
2.500 16.001 LDSLV4 86407
63,50 406,43 17.812 2.125 18.000 LDSLV4 87271
452,42 53,98 457,20
15.998 2.250 16.186 LDSLV3 85908
406,35 57,15 411,12 17.813 2.500 18.001 LDSLV3 86405
452,45 63,50 457,23
16.000 2.000 16.188 LDSLV3 81354
406,40 50,80 411,18 18.163 2.000 18.351 LDSLV4 86343
461,34 50,80 466,12
16.063 0.500 16.251 LDSLV4 87613
408,00 12,70 412,78 18.312 1.191 18.500 LDSLV4 90790
1.250 16.251 LDSLV4 86175 465,12 30,25 469,90
31,75 412,78
1.300 16.251 LDSLV4 86426 18.813 1.750 19.001 LDSLV4 86563
33,02 412,78 477,85 44,45 482,63
2.000 16.251 LDSLV4 86575 2.250 19.001 LDSLV4 87015
50,80 412,78 57,15 482,63
2.500 19.001 LDSLV4 86716
16.313 2.000 16.501 LDSLV4 84697 63,50 482,63
414,35 50,80 419,13
19.496 2.362 19.684 LDSLV4 87631
16.750 1.500 16.938 LDSLV4 87585 495,20 59,99 499,97
425,45 38,10 430,23
19.497 1.575 19.685 LDSLV4 87785
16.812 1.000 17.000 LDSLV4 86737 495,22 40,01 500,00
427,02 25,40 431,80
19.500 1.250 19.688 LDSLV4 90769
16.813 2.250 17.001 LDSLV4 84616 495,30 31,75 500,08
427,05 57,15 431,83
19.563 2.750 19.751 LDSLV4 85654
17.250 1.000 17.438 LDSLV4 90779 496,90 69,85 501,68
438,15 25,40 442,93
2.000 17.438 LDSLV4 84576 19.813 1.250 20.001 LDSLV4 84781
50,80 442,93 503,25 31,75 508,03

17.313 1.500 17.501 LDSLV4 86430 20.312 1.000 20.500 LDSLV4 86739
439,75 38,10 444,53 515,92 25,40 520,70
17.449 2.000 17.637 LDSLV4 85762 20.813 1.250 21.001 LDSLV3 85800
443,20 50,80 447,98 528,65 31,75 533,43
2.125 21.001 LDSLV4 85367
17.500 1.250 17.688 LDSLV4 90770 53,98 533,43
444,50 31,75 449,28 2.500 21.001 LDSLV4 87298
63,50 533,43
17.543 2.362 17.731 LDSLV4 86799
445,59 59,99 450,37

39
