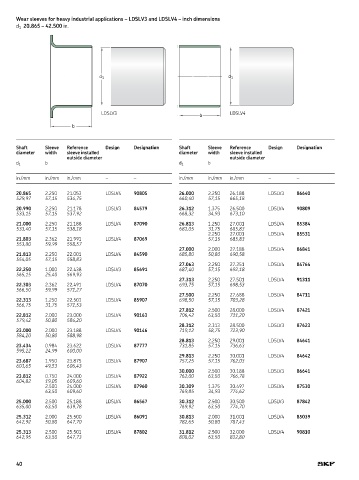

Page 40 - SKF-SPEEDI-SLEEVE

Wear sleeves for heavy industrial applications – LDSLV3 and LDSLV4 – inch dimensions
d 1 20.865 – 42.500 in.

d 1 d 1

LDSLV3 b LDSLV4
b

Shaft Sleeve Reference Design Designation Shaft Sleeve Reference Design Designation
diameter width sleeve installed diameter width sleeve installed
outside diameter outside diameter
d 1 b d 1 b
in./mm in./mm in./mm – – in./mm in./mm in./mm – –

20.865 2.250 21.053 LDSLV4 90805 26.000 2.250 26.188 LDSLV3 86640
529,97 57,15 534,75 660,40 57,15 665,18
20.990 2.250 21.178 LDSLV3 84579 26.312 1.375 26.500 LDSLV4 90809
533,15 57,15 537,92 668,32 34,93 673,10
21.000 2.250 21.188 LDSLV4 87090 26.813 1.250 27.001 LDSLV4 85384
533,40 57,15 538,18 681,05 31,75 685,83
2.250 27.001 LDSLV4 85531
21.803 2.362 21.991 LDSLV4 87069 57,15 685,83
553,80 59,99 558,57
27.000 2.000 27.188 LDSLV4 86841
21.813 2.250 22.001 LDSLV4 84590 685,80 50,80 690,58
554,05 57,15 558,83
27.063 2.250 27.251 LDSLV4 84764
22.250 1.000 22.438 LDSLV3 85691 687,40 57,15 692,18
565,15 25,40 569,93
27.313 2.250 27.501 LDSLV4 91311
22.303 2.362 22.491 LDSLV4 87070 693,75 57,15 698,53
566,50 59,99 571,27
27.500 2.250 27.688 LDSLV4 84711
22.313 1.250 22.501 LDSLV4 85907 698,50 57,15 703,28
566,75 31,75 571,53
27.812 2.500 28.000 LDSLV4 87421
22.812 2.000 23.000 LDSLV4 90163 706,42 63,50 711,20
579,42 50,80 584,20
28.312 2.313 28.500 LDSLV3 87623
23.000 2.000 23.188 LDSLV4 90146 719,12 58,75 723,90
584,20 50,80 588,98
28.813 2.250 29.001 LDSLV4 84641
23.434 0.984 23.622 LDSLV4 87777 731,85 57,15 736,63
595,22 24,99 600,00
29.813 2.250 30.001 LDSLV4 84642
23.687 1.950 23.875 LDSLV4 87907 757,25 57,15 762,03
601,65 49,53 606,43
30.000 2.500 30.188 LDSLV3 86641
23.812 0.750 24.000 LDSLV4 87922 762,00 63,50 766,78
604,82 19,05 609,60
2.500 24.000 LDSLV4 87960 30.309 1.375 30.497 LDSLV4 87530
63,50 609,60 769,85 34,93 774,62
25.000 2.500 25.188 LDSLV4 86567 30.312 2.500 30.500 LDSLV3 87842
635,00 63,50 639,78 769,92 63,50 774,70

25.312 2.000 25.500 LDSLV4 86091 30.813 2.000 31.001 LDSLV4 85039
642,92 50,80 647,70 782,65 50,80 787,43
25.313 2.500 25.501 LDSLV4 87802 31.812 2.500 32.000 LDSLV4 90810
642,95 63,50 647,73 808,02 63,50 812,80

40
