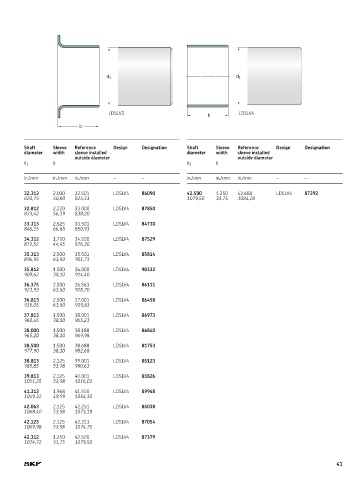

Page 41 - SKF-SPEEDI-SLEEVE

d 1 d 1

LDSLV3 b LDSLV4
b

Shaft Sleeve Reference Design Designation Shaft Sleeve Reference Design Designation
diameter width sleeve installed diameter width sleeve installed
outside diameter outside diameter
d 1 b d 1 b
in./mm in./mm in./mm – – in./mm in./mm in./mm – –

32.313 2.000 32.501 LDSLV4 86090 42.500 1.250 42.688 LDSLV4 87392
820,75 50,80 825,53 1079,50 31,75 1084,28
32.812 2.220 33.000 LDSLV4 87850
833,42 56,39 838,20
33.313 2.625 33.501 LDSLV4 84730
846,15 66,68 850,93
34.312 1.750 34.500 LDSLV4 87529
871,52 44,45 876,30
35.313 2.500 35.501 LDSLV4 85814
896,95 63,50 901,73
35.812 1.500 36.000 LDSLV4 90332
909,62 38,10 914,40
36.375 2.500 36.563 LDSLV4 86111
923,93 63,50 928,70
36.813 2.500 37.001 LDSLV4 86458
935,05 63,50 939,83
37.813 1.500 38.001 LDSLV4 86973
960,45 38,10 965,23
38.000 1.500 38.188 LDSLV4 86840
965,20 38,10 969,98
38.500 1.500 38.688 LDSLV4 81753
977,90 38,10 982,68
38.813 2.125 39.001 LDSLV4 85123
985,85 53,98 990,63
39.813 2.125 40.001 LDSLV4 81826
1011,25 53,98 1016,03
41.312 1.968 41.500 LDSLV4 89948
1049,32 49,99 1054,10
42.063 2.125 42.251 LDSLV4 85038
1068,40 53,98 1073,18
42.125 2.125 42.313 LDSLV4 87054
1069,98 53,98 1074,75
42.312 1.250 42.500 LDSLV4 87379
1074,72 31,75 1079,50
