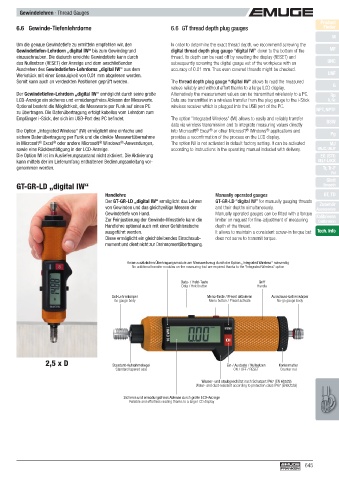

P. 645

Gewindelehren · Thread Gauges
                                                                                                                 Product
       6.6   Gewinde-Tiefenlehrdorne                         6.6   GT thread depth plug gauges                     Finder
                                                                                                                      M
       Um die genaue Gewindetiefe zu ermitteln empfehlen wir, den   In order to determine the exact thread depth, we recommend screwing the
         Gewindetiefen-Lehrdorn „digital IW“ bis zum Gewindegrund   digital thread depth plug gauge “digital IW” down to the bottom of the   MF
         einzuschrauben. Die dadurch erreichte Gewindetiefe kann durch   thread. Its depth can be read off by resetting the display (RESET) and
       das Nullsetzen (RESET) der Anzeige und dem anschließenden     subsequently screwing the digital gauge out of the workpiece with an   UNC
       Ausdrehen des Gewindetiefen-Lehrdorns „digital IW“ aus dem   accuracy of 0.01 mm. Thus even covered threads might be checked.
       Werkstück mit einer Genauigkeit von 0,01 mm abgelesen werden.                                                UNF
       Somit kann auch an verdeckten Positionen geprüft werden.   The thread depth plug gauge “digital IW” allows to read the measured
                                                             values reliably and without effort thanks to a large LCD display.   G
       Der Gewindetiefen-Lehrdorn „digital IW“ ermöglicht durch seine große   Alternatively the measurement values can be transmitted wirelessly to a PC.   Rp
       LCD-Anzeige ein sicheres und ermüdungsfreies Ablesen der Messwerte.   Data are transmitted in a wireless transfer from the plug gauge to the i-Stick   R, Rc
       Optional besteht die Möglichkeit, die Messwerte per Funk auf einen PC   wireless receiver which is plugged into the USB port of the PC.
       zu übertragen. Die Datenübertragung erfolgt kabellos vom Lehrdorn zum                                     NPT, NPTF
       Empfänger i-Stick, der sich im USB-Port des PC befi ndet.   The option “Integrated Wireless” (IW) allows to easily and reliably transfer
                                                             data via wireless transmission and to integrate measuring values directly   BSW
                                                                      ®
                                                                                               ®
       Die Option „Integrated Wireless“ (IW) ermöglicht eine einfache und   into Microsoft  Excel  or other Microsoft Windows  applications and
                                                                                       ®
                                                                           ®
       sichere Datenübertragung per Funk und die direkte Messwertübernahme   provides a  reconfi rmation of the process on the LCD display.  Pg
                                    ®
               ®
                                           ®
                    ®
       in Microsoft  Excel  oder andere Microsoft  Windows -Anwendungen,   The option IW is not activated in default factory setting. It can be activated   MJ
       sowie eine Rückbestätigung in der LCD-Anzeige.        according to instructions in the operating manual included with delivery.      UNJC, UNJF
       Die Option IW ist im Auslieferungszustand nicht aktiviert. Die Aktivierung                                 EG (STI)
       kann mittels der im Lieferumfang enthaltenen Bedienungsanleitung vor-                                        SELF-LOCK
       genommen werden.                                                                                            Tr, Tr-F
                                                                                                                     Rd
                                                                                                                    Glatt
       GT-GR-LD „digital IW“                                                                                       Smooth
                                      Handlehre                              Manually operated gauges              GT, TD
                                      Der GT-GR-LD „digital IW“ ermöglicht das Lehren   GT-GR-LD “digital IW” for manually gauging threads
                                      von Gewinden und das gleichzeitige Messen der   and their depths simultaneously.   Zubehör
                                                                                                                   Accessories
                                      Gewindetiefe von Hand.                 Manually operated gauges can be fi tted with a torque
                                      Zur Feinjustierung der Gewinde-Messtiefe kann die   limiter on request for fi ne-adjustment of measuring    Kalibrieren
                                                                                                                    Calibration
                                      Handlehre optional auch mit einer Gefühlsratsche   depth of the thread.
                                      ausgeführt werden.                     It allows to maintain a consistent screw-in torque but    Tech. Info
                                      Diese ermöglicht ein gleichbleibendes Einschraub-  does not serve to transmit torque.
                                      moment und dient nicht zur Drehmomentübertragung.
                                              Keine zusätzlichen Übertragungsmodule am Messwerkzeug durch die Option „Integrated Wireless“ notwendig
                                               No additional transfer modules on the measuring tool are required thanks to the “Integrated Wireless” option

                                                                 Data- / Hold-Taste         Griff
                                                                 Data / Hold button        Handle
                                        Gut-Lehrenkörper                  Menü-Taste / Preset aktivieren  Ausschuss-Lehrenkörper
                                         Go gauge body                    Menu button / Preset activate  No-go gauge body











                 2,5 x D                 Standard-Aufnahmekegel                  Ein-/ Austaste / Nullsetzen  Kontermutter
                                          Standard tapered seat                    ON / OFF / RESET  Counter nut

                                                                        Wasser- und staubgeschützt nach Schutzart IP67 (EN 60529)
                                                                      Water- and dust-resistant according to protection class IP67 (EN60529)

                                            Sicheres und ermüdungsfreies Ablesen durch große LCD-Anzeige
                                              Reliable and effortless reading thanks to a large LCD display











                                                                                                            645
