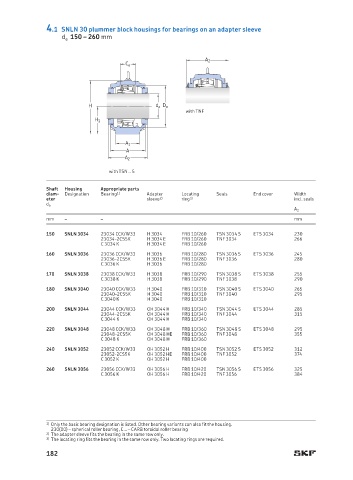

4.1 SNLN 30 plummer block housings for bearings on an adapter sleeve
d a 150 – 260 mm

A 2
C a

H d a D a
with TNF
H 1

A 1
A
A 2
with TSN .. S

Shaft Housing Appropriate parts
diam- Designation Bearing 1) Adapter Locating Seals End cover Width
eter sleeve 2) ring 3) incl. seals
d a
A 2
mm – – mm
150 SNLN 3034 23034 CCK/W33 H 3034 FRB 10/260 TSN 3034 S ETS 3034 230
23034-2CS5K H 3 034 E FRB 10/260 TNF 3034 266
C 3034 K H 3 034 E FRB 10/260
160 SNLN 3036 23036 CCK/W33 H 3 036 FRB 10/280 TSN 3036 S ETS 3036 245
23036-2CS5K H 3 036 E FRB 10/280 TNF 3036 280
C 3036 K H 3 036 FRB 10/280
170 SNLN 3038 23038 CCK/W33 H 3038 FRB 10/290 TSN 3038 S ETS 3038 255
C 3038 K H 3038 FRB 10/290 TNF 3038 290
180 SNLN 3040 23040 CCK/W33 H 3 040 FRB 10/310 TSN 3040 S ETS 3040 265
23040-2CS5K H 3 040 FRB 10/310 TNF 3040 295
C 3040 K H 3 040 FRB 10/310
200 SNLN 3044 23044 CCK/W33 OH 3 044 H FRB 10/340 TSN 3044 S ETS 3044 285
23044-2CS5K OH 3044 H FRB 10/340 TNF 3044 315
C 3044 K OH 3044 H FRB 10/340
220 SNLN 3048 23048 CCK/W33 OH 3048 H FRB 10/360 TSN 3048 S ETS 3048 295
23048-2CS5K OH 3048 HE FRB 10/360 TNF 3048 355
C 3048 K OH 3048 H FRB 10/360
240 SNLN 3052 23052 CCK/W33 OH 3052 H FRB 10/400 TSN 3052 S ETS 3052 312
23052-2CS5K OH 3052 HE FRB 10/400 TNF 3052 374
C 3052 K OH 3052 H FRB 10/400
260 SNLN 3056 23056 CCK/W33 OH 3056 H FRB 10/420 TSN 3056 S ETS 3056 325
C 3056 K OH 3056 H FRB 10/420 TNF 3056 384

1) Only the basic bearing designation is listed. Other bearing variants can also fit the housing.
230(00) – spherical roller bearing, C… – CARB toroidal roller bearing
2) The adapter sleeve fits the bearing in the same row only.
3) The locating ring fits the bearing in the same row only. Two locating rings are required.
182
