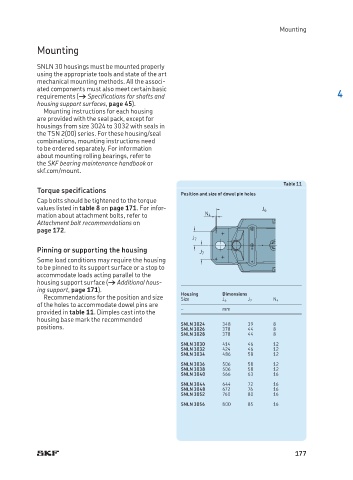

Mounting

SNLN 30 housings must be mounted properly
using the appropriate tools and state of the art
mechanical mounting methods. All the associ-
ated components must also meet certain basic
requirements († Specifications for shafts and 4
housing support surfaces, page 45).
Mounting instructions for each housing
are provided with the seal pack, except for
housings from size 3024 to 3032 with seals in
the TSN 2(00) series. For these housing/seal
combinations, mounting instructions need
to be ordered separately. For information
about mounting rolling bearings, refer to
the SKF bearing maintenance handbook or
skf.com/mount.
Table 11
Torque specifications
Position and size of dowel pin holes
Cap bolts should be tightened to the torque
values listed in table 8 on page 171. For infor- J 6
mation about attachment bolts, refer to N 4
Attachment bolt recommendations on
page 172.
J 7
Pinning or supporting the housing J 7
Some load conditions may require the housing
to be pinned to its support surface or a stop to
accommodate loads acting parallel to the
housing support surface († Additional hous-
ing support, page 171). Housing Dimensions
Recommendations for the position and size Size J 6 J 7 N 4
of the holes to accommodate dowel pins are – mm
provided in table 11. Dimples cast into the
housing base mark the recommended SNLN 3024 348 39 8
positions. SNLN 3026 378 44 8
SNLN 3028 378 44 8
SNLN 3030 414 46 12
SNLN 3032 424 46 12
SNLN 3034 486 58 12
SNLN 3036 506 58 12
SNLN 3038 506 58 12
SNLN 3040 566 63 16
SNLN 3044 644 72 16
SNLN 3048 672 76 16
SNLN 3052 760 80 16
SNLN 3056 800 85 16
