Split plummer block housings SNLN 30 series

Condition monitoring Accessories

SNLN 30 plummer (pillow) block housings The following accessories are available for
have appropriate positions for condition moni- SNLN 30 plummer (pillow) block housings:
toring sensors († fig. 15).
Position 1 is a measurement point perpen- • Adapter for G 1/4 connections: LAPN 1/8
dicular to the shaft, and should be used when • Automatic lubricators: SKF SYSTEM 24 and
the housing is hung from its support or when SKF MultiPoint
loads act away from the support surface. • Grease meter: LAGM 1000E
Position 2 is a measurement point parallel • Condition monitoring sensors
to the shaft and should be used when loads act
toward the support surface. Both positions 1 For additional information, refer to SKF tools
and 2 are in accordance with ISO 10816-1. and products († page 47).
Position 3 is a measurement point that is
approximately 20° to 45° to the shaft axis.

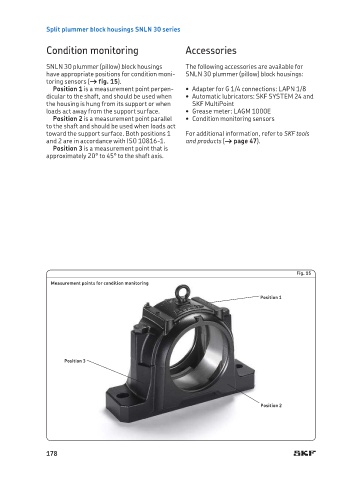

Fig. 15
Measurement points for condition monitoring

Position 1

Position 3

Position 2
