Lubrication

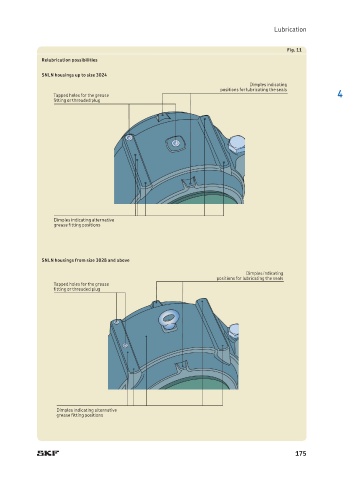

Fig. 11
Relubrication possibilities
SNLN housings up to size 3024
Dimples indicating
positions for lubricating the seals
Tapped holes for the grease 4
fitting or threaded plug
Dimples indicating alternative
grease fitting positions
SNLN housings from size 3028 and above
Dimples indicating
positions for lubricating the seals
Tapped holes for the grease
fitting or threaded plug
Dimples indicating alternative
grease fitting positions
