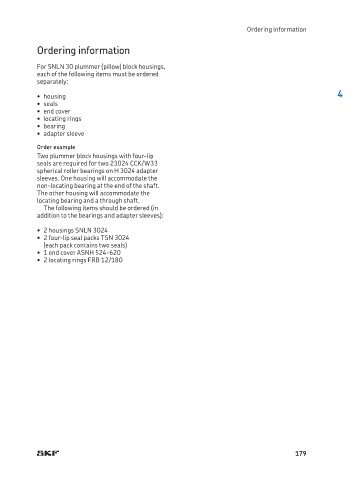

Ordering information

           Ordering information

           For SNLN 30 plummer (pillow) block housings,
           each of the following items must be ordered
           separately:
           •  housing                                                                   4
           •  seals
           •  end cover
           •  locating rings
           •  bearing
           •  adapter sleeve
           Order example
           Two plummer block housings with four-lip
           seals are required for two 23024 CCK/W33
           spherical roller bearings on H 3024 adapter
           sleeves. One housing will accommodate the
           non-locating bearing at the end of the shaft.
           The other housing will accommodate the
           locating bearing and a through shaft.
            The following items should be ordered (in
           addition to the bearings and adapter sleeves):

           •  2 housings SNLN 3024
           •  2 four-lip seal packs TSN 3024
            (each pack contains two seals)
           •  1 end cover ASNH 524-620
           •  2 locating rings FRB 12/180
