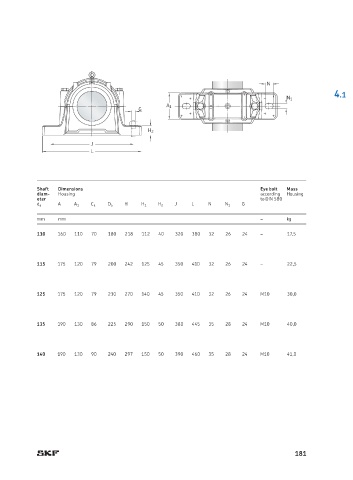

P. 185
N
4.1
N 1
A 1
G
H 2
J
L
Shaft Dimensions Eye bolt Mass
diam - Housing according Housing
eter to DIN 580
A H J L N G
d a A 1 C a D a H 1 H 2 N 1
mm mm – kg
110 160 110 70 180 218 112 40 320 380 32 26 24 – 17,5
115 175 120 79 200 242 125 45 350 410 32 26 24 – 22,5
125 175 120 79 210 270 140 45 350 410 32 26 24 M10 30,0
135 190 130 86 225 290 150 50 380 445 35 28 24 M10 40,0
140 190 130 90 240 297 150 50 390 460 35 28 24 M10 41,0
181
