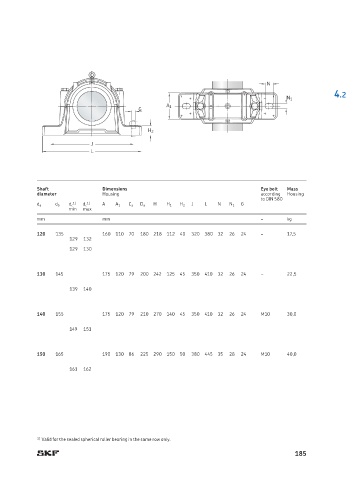

Page 189 - SKF-bearing-housings

N
4.2
N 1
A 1
G

H 2
J
L

Shaft Dimensions Eye bolt Mass
diameter Housing according Housing
to DIN 580
1) 1) A H J L N G
d a d b d c d c A 1 C a D a H 1 H 2 N 1
min max
mm mm – kg
120 135 160 110 70 180 218 112 40 320 380 32 26 24 – 17,5
129 132
129 130

130 145 175 120 79 200 242 125 45 350 410 32 26 24 – 22,5
139 140

140 155 175 120 79 210 270 140 45 350 410 32 26 24 M10 30,0

149 151

150 165 190 130 86 225 290 150 50 380 445 35 28 24 M10 40,0
161 162

1) Valid for the sealed spherical roller bearing in the same row only.

185
