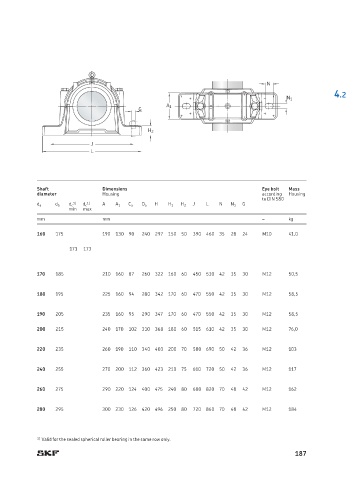

N
4.2
N 1
A 1
G

H 2
J
L

Shaft Dimensions Eye bolt Mass
diameter Housing according Housing
to DIN 580
1) 1) A H J L N G
d a d b d c d c A 1 C a D a H 1 H 2 N 1
min max
mm mm – kg
160 175 190 130 90 240 297 150 50 390 460 35 28 24 M10 41,0

171 173

170 185 210 160 87 260 322 160 60 450 530 42 35 30 M12 50,5

180 195 225 160 94 280 342 170 60 470 550 42 35 30 M12 58,5

190 205 235 160 95 290 347 170 60 470 550 42 35 30 M12 58,5

200 215 240 170 102 310 368 180 60 515 610 42 35 30 M12 76,0

220 235 260 190 110 340 403 200 70 580 690 50 42 36 M12 103

240 255 270 200 112 360 423 210 75 610 720 50 42 36 M12 117

260 275 290 220 124 400 475 240 80 680 820 70 48 42 M12 162

280 295 300 230 126 420 496 250 80 720 860 70 48 42 M12 184

1) Valid for the sealed spherical roller bearing in the same row only.
