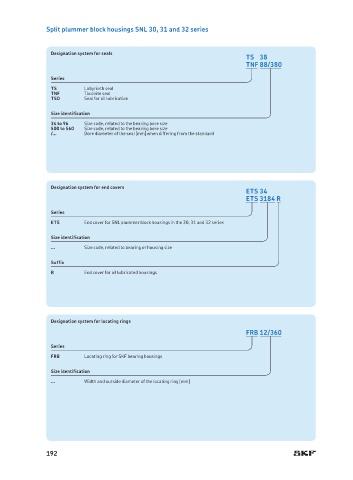

Split plummer block housings SNL 30, 31 and 32 series


              Designation system for seals
                                                                 TS  38
                                                                 TNF 88/380
              Series
              TS       Labyrinth seal
              TNF      Taconite seal
              TSD      Seal for oil lubrication
              Size identification
              34 to 96   Size code, related to the bearing bore size
              500 to 560   Size code, related to the bearing bore size
              /…       Bore diameter of the seal [mm] when differing from the standard






              Designation system for end covers
                                                                 ETS 34
                                                                 ETS 3184 R
              Series
              ETS      End cover for SNL plummer block housings in the 30, 31 and 32 series
              Size identification
              …        Size code, related to bearing or housing size
              Suffix
              R        End cover for oil lubricated housings






              Designation system for locating rings
                                                                 FRB 12/360

              Series
              FRB      Locating ring for SKF bearing housings

              Size identification
              …        Width and outside diameter of the locating ring [mm]
