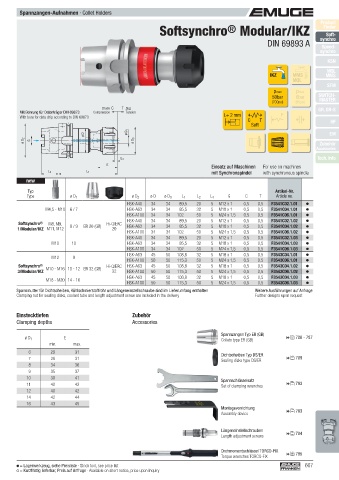

P. 667

Spannzangen-Aufnahmen ·   Collet Holders
                                                                                                                 Product
                                                                                 ®
                                                         Softsynchro  Modular/IKZ                                  Finder
                                                                                                                    Soft-
                                                                                               DIN 69893 A       synchro
                                                                                                                  Speed-
                                                                                                                 synchro
                                                                                                                    KSN
                                                                                                                    MQL
                                                                                                IKZ     MMS        MMS
                                                                                                        MQL
                                                                                                                    SFM
                                                                                                 pmax    pmax
                                                                                                 50bar   6bar    SWITCH-
                                                                                                (700psi)  (85psi)   MASTER
                                     Druck C  T  Zug                                                              GR, GR-S
        Mit Bohrung für Datenträger DIN 69873  Compression  Tension             L+ 2 mm             F
        With bore for data chip according to DIN 69873
                                                                                        C   T                        HF
                                                                                         Soft
                              ø D             ø D 1                                                                  EM
         ø D 2  G                               ø D 3                                                            Zubehör
                                                                                                                   Accessories
                                           L 4                                                                   Tech. Info
                                      E                                    Einsatz auf Maschinen   For use on machines
                                                                           mit Synchronspindel  with synchronous spindle
                  L 2          L 1
          new
           Typ                                                                                     Artikel-Nr.
          Type            ø D  1               ø D  2  ø D  ø D  3  L  1  L  2  L  4  G  C  T        Article no.
                                              HSK-A40  34  34   89,5  20   5  M12 x 1  0,5  0,5  F3541C02.1.01
                 M4,5 - M10  6 / 7            HSK-A63  34  34   95,5  32   5  M18 x 1  0,5  0,5  F3541C04.1.01
                                              HSK-A100  34  34  102   50   5  M24 x 1,5  0,5  0,5  F3541C06.1.01
                                              HSK-A40  34  34   89,5  20   5  M12 x 1  0,5  0,5  F3541C02.1.02
       Softsynchro ®  M8, M9,         Hi-Q/ERC
       1/Modular/IKZ M11, M12  8 / 9  ER 20 (GB)  20  HSK-A63  34  34  95,5  32  5  M18 x 1  0,5  0,5  F3541C04.1.02
                                              HSK-A100  34  34  102   50   5  M24 x 1,5  0,5  0,5  F3541C06.1.02
                                              HSK-A40  34  34   89,5  20   5  M12 x 1  0,5  0,5  F3541C02.1.03
                   M10    10                  HSK-A63  34  34   95,5  32   5  M18 x 1  0,5  0,5  F3541C04.1.03
                                              HSK-A100  34  34  102   50   5  M24 x 1,5  0,5  0,5  F3541C06.1.03
                                              HSK-A63  45  50  108,8  32   5  M18 x 1  0,5  0,5  F3543C04.1.01
                   M12     9
                                              HSK-A100  50  50  115,3  50  5  M24 x 1,5  0,5  0,5  F3543C06.1.01
       Softsynchro ®                  Hi-Q/ERC  HSK-A63  45  50  108,8  32  5  M18 x 1  0,5  0,5  F3543C04.1.02
       3/Modular/IKZ  M10 - M16 10 - 12  ER 32 (GB)  32  HSK-A100  50  50  115,3  50  5  M24 x 1,5  0,5  0,5  F3543C06.1.02
                                              HSK-A63  45  50  108,8  32   5  M18 x 1  0,5  0,5  F3543C04.1.03
                 M18 - M20 14 - 16
                                              HSK-A100  50  50  115,3  50  5  M24 x 1,5  0,5  0,5  F3543C06.1.03
       Spannmutter für Dichtscheiben, Kühlschmierstoffrohr und Längeneinstellschraube sind im Lieferumfang enthalten     Weitere Ausführungen auf Anfrage
         Clamping nut for sealing disks, coolant tube and length adjustment screw are included in the delivery  Further designs upon request


        Einstecktiefen                          Zubehör
       Clamping depths                         Accessories

                                                                               Spannzangen Typ ER (GB)
          ø D  1        E                                                        Collets type ER (GB)   786 - 787
                  min.     max.
           6       29      31                                                  Dichtscheiben Typ DS/ER
            7      29      31                                                    Sealing disks type DS/ER   789
            8      34      36
            9      35      37
          10       39      41                                                  Spannschlüsselsatz
          11       40      42                                                  Set of clamping wrenches   793
          12       40      42
          14       42      44
          16       43      45
                                                                                Montagevorrichtung
                                                                                 Assembly device      793


                                                                                Längeneinstellschrauben    784
                                                                                 Length adjustment screws

                                                                                Drehmomentschlüssel TORCO-FIX    795
                                                                                Torque wrenches TORCO-FIX
         = Lagerwerkzeug, siehe Preisliste  · Stock tool, see price list                                    667
         = Kurzfristig lieferbar, Preis auf Anfrage  · Available on short notice, price upon inquiry
