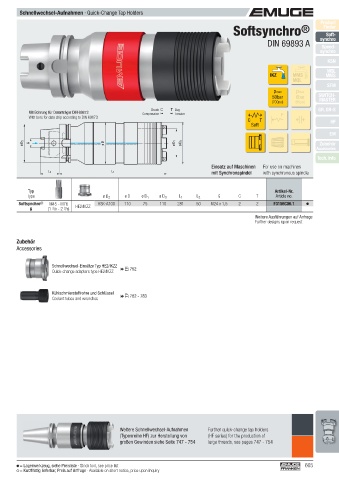

Page 665 - EMUGE
P. 665

Schnellwechsel-Aufnahmen ·  Quick-Change Tap Holders
                                                                                                                 Product
                                                                                 Softsynchro               ®       Finder
                                                                                                                    Soft-
                                                                                               DIN 69893 A       synchro
                                                                                                                  Speed-
                                                                                                                 synchro
                                                                                                                    KSN
                                                                                                                    MQL
                                                                                                IKZ     MMS        MMS
                                                                                                         MQL
                                                                                                                    SFM
                                                                                                 pmax    pmax
                                                                                                 50bar   6bar    SWITCH-
                                                                                                                 MASTER
                                                                                                 (700psi)     (85psi)
                                                      Druck C  T  Zug                                             GR, GR-S
           Mit Bohrung für Datenträger DIN 69873   Compression  Tension                             F
           With bore for data chip according to DIN 69873
                                                                                        C   T                        HF
                                                                                         Soft
                                                                                                                     EM
         ø D 2  G                     ø D                     ø D 1  ø D 3                                       Zubehör
                                                                                                                   Accessories
                                                                                                                 Tech. Info
                                                                           Einsatz auf Maschinen   For use on machines
                                                                           mit Synchronspindel  with synchronous spindle
                  L 2                   L 1

           Typ                                                                                     Artikel-Nr.
           Type                      ø D  2  ø D   ø D  1  ø D  3  L  1  L  2  G     C     T         Article no.
        Softsynchro ®  M45 - M76  HE2/IKZZ  HSK-A100  110  75  110  281  50  M24 x 1,5  2  2     F3156C06.1
            6     (1  3 /8 - 2  3 /8)
                                                                                             Weitere Ausführungen auf Anfrage
                                                                                           Further designs upon request


        Zubehör
       Accessories


                   Schnellwechsel-Einsätze Typ HE2/IKZZ
                     Quick-change adapters type HE2/IKZZ    752


                     Kühlschmierstoffrohre und Schlüssel    782 - 783
                     Coolant tubes and wrenches



























                                           Weitere Schnellwechsel-Aufnahmen   Further quick-change tap holders
                                           (Typenreihe HF) zur Herstellung von   (HF series) for the production of
                                           großen Gewinden siehe Seite 747 - 754  large threads, see pages 747 - 754




         = Lagerwerkzeug, siehe Preisliste  · Stock tool, see price list                                    665
         = Kurzfristig lieferbar, Preis auf Anfrage  · Available on short notice, price upon inquiry
